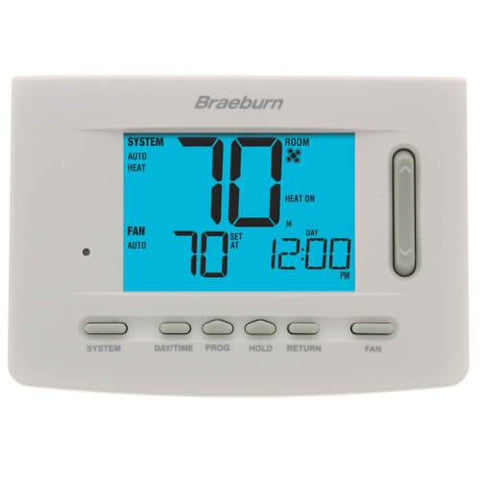

Braeburn Builder Model 5220 Programmable Thermostat 3Heat/2 Cool (DISCONTINUED 2023) Replacement Models Available

Availability:
Out-Stock
  • Programming: 7 Day, 5-2 Day, or Non-Programmable
  • Warranty: 5 Year

$104.00 USD

Sold Out

PRODUCT INFO

Features

  • Dual Powered-Hardwired or Battery
  • 5-2 Day Separate Weekday/Weekend Programming
  • 5 Sq. In Display
  • Non-Volatile Memory to Retains User Settings
  • Filter Check Monitor
  • Adaptive Recovery Mode (ARMTM)
  • Adjustable 1st and 2nd Stage Temperature Differential
  • ESD GuardTM Electronic Circuitry
  • Compressor Short Cycle Protection
  • Separate Heating and Cooling Set Point Program Times and Temperatures
  • Temporary Program Override for 4 Hours or Until Next Set Point
  • Programmable Extended Hold Mode
  • Front Access Reset Button
  • F°/C° Switch
  • Gas/Electric Fan Switch

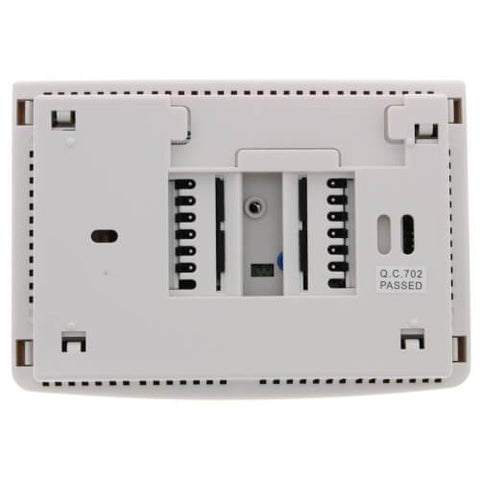

  • Mount to Horizontal Box
  • Three Level Low Battery Indication
  • Easy Access Front Battery Door
  • Separate O & B Terminals
  • Meets ENERGY STAR and California Title 24 Guidelines
  • 5 Year Warranty

Braeburn 5220 Replaces*

  • Honeywell*TH6220D, TH6220U, TH6320D
  • Emerson* 1F85-0477, 1F85U-421PR, 1F95-0671, 1F95EZ-0671

*Verify specific application requirements. All trademarks are the property of their respective owners.

SPECIFICATIONS




Dimensions:3.86” x 5.11” x 1.42”

Electric Rating:24 Volt AC (18-30 Volt AC) 1 amp maximum load per terminal 5 amp total maximum load (all terminals)

AC Power:18-30 Volt AC

DC Power:3.0 Volts DC (2 “AA” Alkaline batteries included)

Compatibility:Heat pump systems up to 3 heat/2 cool, Conventional systems up to 2 heat/2 cool 250mv – 750mv millivolt heating systems

Control Range: 45° to 90° F (7° to 32° C)

Display Range:40° to 99° F (5° to 37° C)

Accuracy:+/- 1° F (+/- .5° C)

Temperature Differential:1st Stage - .5°, 1°, or 2° F (0.2°, 0.5°, or 1° C) 2nd and 3rd Stage - 1°, 2°, 3°, 4°, 5°, or 6° F (.5°, 1°, 1.5°, 2°, 2.5°, or 3° C)

Storage Temperature:14° to 140° F (-10° to 60° C)

Operating Humidity:5% to 95% Relative Humidity

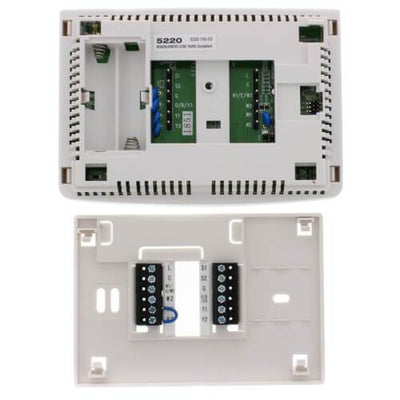

Terminations:G, Rc, Rh, W2, O/B/V3, Y1, Y2, W1/E/W3, C, L, S1, S2
