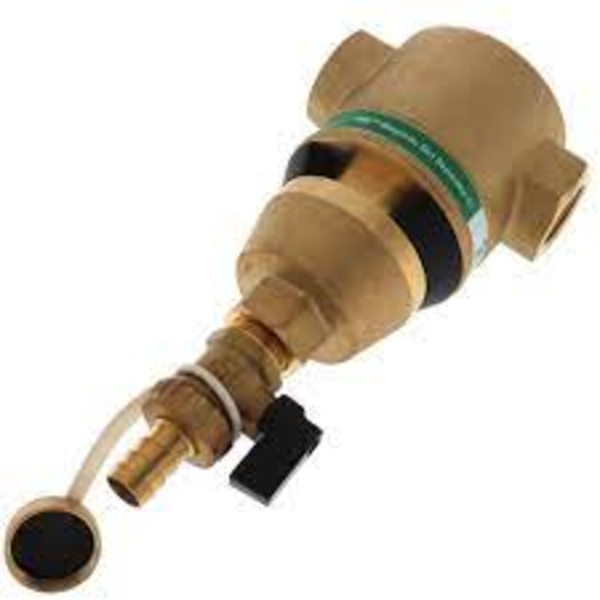

Taco 49MD-150T-2 1-1/2" Brass Magnetic Dirt Separator (Threaded)

Availability:
In-Stock
Taco’s 4900 Series™ of magnetic dirt separators increase system life and efficiency by removing ferrous material and other harmful, loose particles from closed loop hydronic heating systems. A powerful, service-free magnetic ring and convenient blow down valve are included for quick and easy system maintenance. Available with Sweat or NPT connections in sizes ranging from 3/4” – 2”.

Product Specifications
  • Housing: Brass
  • Max. Operating Pressure: 150 psi
  • Max. Operating Temperature: 240°F
  • Min. Operating Temperature: 35°F
  • Max. Velocity: 5 feet/sec
  • Water or Water/Glycol up to 50% Glycol, Closed Systems

      $391.00 USD

      Title
      Buy Now
      SKU:
      49MD-150T-2
      ID:
      TC200-2S9-0320

      SPECIFICATIONS


      Body Type Brass

      ApplicationHeating

      Product Type
      Dirt Eliminator

      Size1-1/2''

      TypeMagnetic



      Connection TypeFNPT x FNPT

      Connection MethodThreaded

      Max Pressure (PSI)150

      Max Temp (F)240°F

      Flow Capacity (Cv)35
