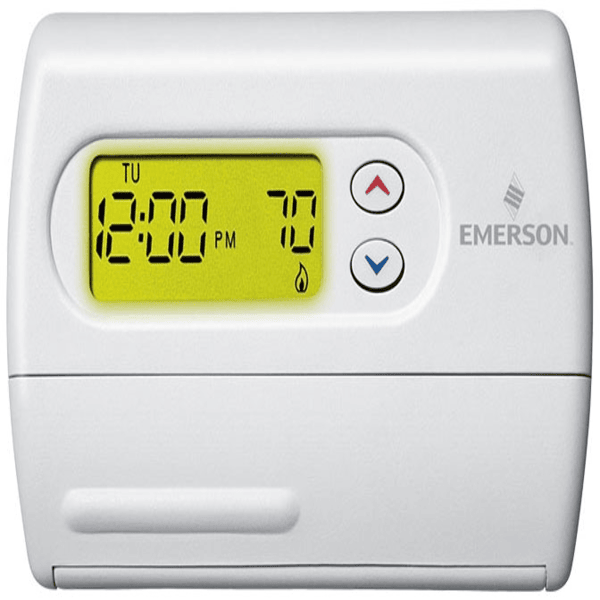

White-Rodgers 1F87-361 7-Day Programmable Thermostat, 24 Volt or Millivolt system
- Thermostat
- Type 7 Day Programmable, 1-Heat/1-Cool (Conventional/Heat Pump), 1-Stage
- Cover Type Rectangular Horizontal
- Voltage Rating 30 Volt AC (Battery), 24 Volt AC at 50/60 Hertz (Hardwire)
- Current Rating 1 to 1.5 Amp (Load Terminal)
- Temperature Rating 32 to 105 Deg F
- Size 6 Inch Width x 1-3/16 Inch Depth x 3-7/8 Inch Height
- Display Size 2.2 Square Inch
- Set Point Temperature 45 to 99 Deg F
- Display Temperature 32 to 99 Deg F
- Terminal Designation RC, RH, C, W, Y, O, B, G
- Humidity 90 Percent (Non-Condensing)
- Application Gas, Oil, Electric, Millivolt Compatible
- Applicable Standard NEC Class II
$80.00 USD
SKU:
1F87-361
ID:
WR100-2MP9-0070
