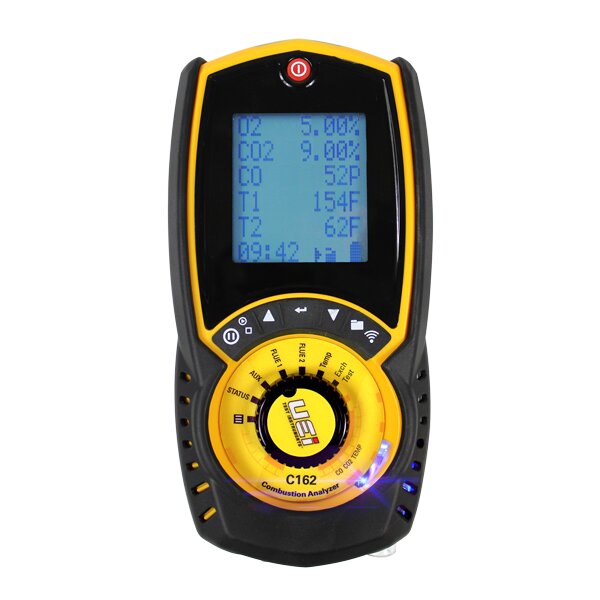

UEI C162 Residential Combustion Analyzer w/ Printer Kit

The C162, with EOS Technology, eliminates the number one hassle experienced by HVAC technicians, the cost and down time of replacing the O2 sensor. The EOS award-winning technology for combustion analysis replaces the everyday electro-optical sensor with EOS CO2 technology, lowering the cost of ownership. The C162 offers direct CO2 measurement and features a 30 second start up time.

Features

• Backlight: Yes
• Worklight: Yes
• Temperature Inputs: K-Type
• Temp differential: Yes
• Free App Available: Yes
• Protective boot or overmolding: Yes
• Sensor Technology: EOS
• Preprogrammed Fuels: 8
• Start time: 60 second
• High altitude compensation: Yes
• Memory Positions: 30
• Selectable units: Yes
• Magnetic mount: Yes
• Warranty: 1-Year limited
• Recording/Data Logging: Yes
• Temperature probe: K-Type
• K-type input: Yes
• Real Time Clock: Yes
• Digital: Yes
• Automatic fresh air purge: Yes
• Number of display parameters: 6 line
• IR printer link: Yes
• NOx Filtered: Yes

Includes

• CO: 2000 ppm
• CO2: 20%
• O2: 21%
• Draft: Yes
• Flue temperature: 32˚ to 1112˚F (0˚ to 600˚C)
• Inlet temperature: 32˚ to 1112˚F (0˚ to 600˚C)
• Heat exchanger test: Yes
• Differential Temperature: Yes
• K-type Temperature Range: -40˚ to 950˚F (-40˚ to 510˚C)

Functions

• Quick Start Guide: Yes
• Batteries: 3 (AA) Rechargeable
• Pouch/Cases: Yes
• Infrared printer: Yes
• Flue probe: Yes with 6 foot hose
• Printer paper roll: Yes
• USB cable: Yes
• Inlet tube/probe connector: Yes
• Particle filter: Yes
• Charger: Yes
• K-Type thermocouples: 2
• Filter: Yes

Certification

• CE Conformity: Yes
• RoHS: Yes
• REACH Compliant: Yes
• AHRI 1260 Stnadard: Yes
