UEI CD200 Long Neck Combustible Gas Leak Detector
CD100A Long Neck Combustible Gas Leak Detector
- The Length of Gooseneck: 18 inch
- Detection Senisitivity: 50 ppm
- Batteries: AA (4)
- Warranty: 3-Year limited
$209.00 USD
PRODUCT INFO

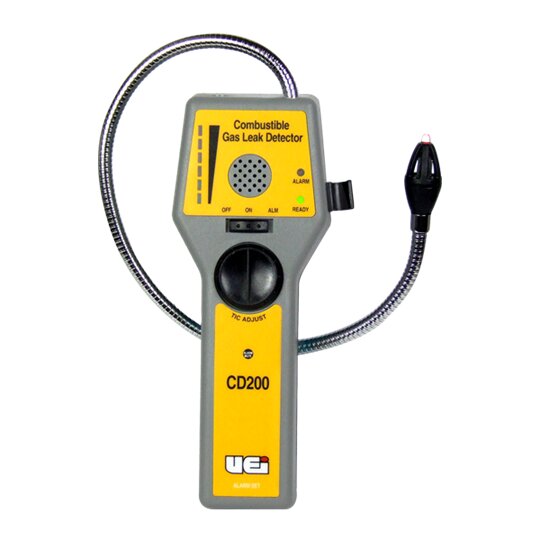

The CD200 has a long, slim gooseneck probe and a bright LED tip light to find combustible gas leaks in tight areas. Its adjustable alarm, easy one-hand operation and impact resistant storage case add up to value and convenience.
The CD200 detects a wide variety of gasses, including some toxic gasses and nuisance vapors. The following list represents only a portion of the more common gasses it will detect: Acetone, industrial solvents, alcohol, jet fuel, ammonia, lacquer, thinners, benzene, methane, butane, naphtha, ethylene oxide, natural gas, gasoline-petrol, propane, halon, refrigerants, hydrogen sulfide and toluene. Detect combustible gas leaks in residential and small commercial applications
- Worklight: Yes
- Protective boot or overmolding: Yes
- The length of the flexible tube: 18 inch
- Adjustable tic rate: Yes
- Audible and visual tic rate: Yes
Standards
- IEC 61010: 61010-2
- EN500082-1-Yes
SPECIFICATIONS
| Sensitivity | 50 ppm | ||
| Level indicators Audible | Adjustable tick with separate adjustable alarm | ||
| Tic indication | Flashing LED | ||
| Battery | Approximately 12 hours (Alkaline) | ||
| Sensor | Solid state | ||
| Dimensions | 8” x 4” x 1-1/2” | ||
| Weight | 15 oz. | ||
| Tube length | 18 inch | ||
| Power supply | Four “AA” Alkaline batteries | ||
| Warm-up | Approximately one minute | ||
| Response time | < two seconds (to 40% LEL) | ||
| Recovery time | < four seconds (from 40% LEL) | ||
| Duty cycle | Continuous | ||
| Operating environment | "32˚ to 122˚F (0˚ to 50˚C) 10 to 90% RH" |
