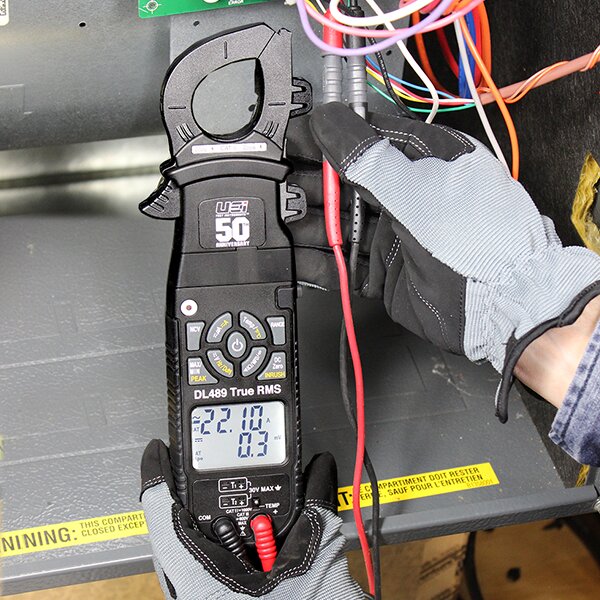

UEI DL489 Premium Dual Display True RMS Wireless Clamp Meter w/ Dual Temperature

The DL489 True RMS Clamp meter offers contractors better features, functions and safety in a commemorative edition housing. A complete meter with the precision of True RMS and the functionality your job requires. Featuring 600A AC/DC, 750V AC and 1000V DC, resistance, capacitance, diode test, continuity, microamps and LRA Inrush. The DL489 is the complete meter your job requires.

• Peak Hold
• Data hold
• Min/Max
• Manual ranging
• Backlight
• Worklight
• Low battery indicator
• Auto power
• Test lead storage
• Magnetic mount
• Battery compartment latches
• Input jack locks
• Detachable clamp head
• 2-Year limited warranty

Functions

• True RMS
• 600A AC/DC
• 750V AC/1000V DC
• Resistance 60MΩ
• Capacitance 2000µF
• AC/DC microAmps 2000µA
• Dual temperature -328˚to 2462˚F
• Frequency 99.99kHz
• Duty cycle
• Diode test
• NCV
• Audible continuity
• LRA inrush

Standards

• Drop Protection: 6 foot
• Ingress Protection: 42
• ETL listed: 3rd edition
• IEC 61010: 3rd ediition
• CE Conformity: Yes
• CAT Rating: CATIII 600V/ CATII 1000V
• RoHS: Yes

Applications

• Motor or line current
• Control voltage or system board voltage checks
• Circuit continuity or specified resistance
• Motor run or start faults
• Ambient or surface temperatures
• Flame safe guard
• Variable speed drives & supply power
