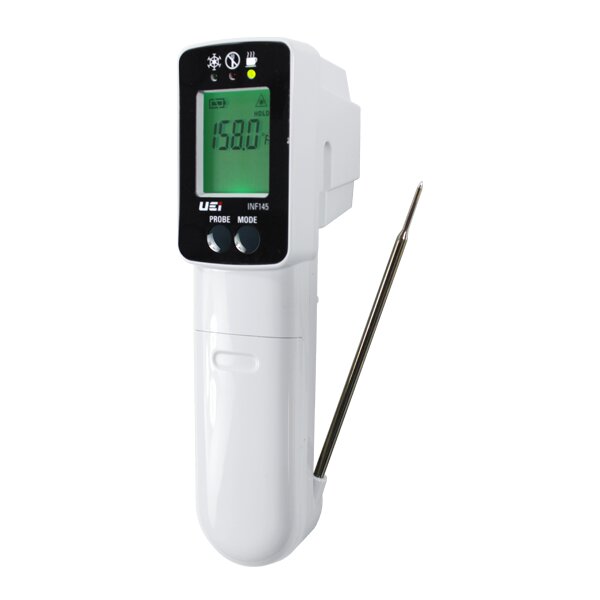

UEI INF145 NSF Infrared Thermometer w/ Folding Probe
8:1 IR Thermometer w/ Circular Laser INF145
- Temperature 662˚F
- Laser type Circular
- Distance-to-spot ratio 8:1
- Warranty 1-Year limited
$0.00 USD
SKU:
INF145
ID:
T100-1S9-1002
Categories:
PRODUCT INFO
The INF145 features circular laser targeting, HACCP Danger zones, a built-in probe and NSF certification making it ideal for food environments.
Features
- Circular laser targeting
- Dual display
- Selectable emissivity level: 0.1 to 1.0
- Min/Max/Hold
- Lock
- HACCP zone check
- Colored HACCP backlit display
- Auto power off
- Hi/Lo alarm
- Celsius or Farenheit
- Low battery indicator
- 1-Year limited warranty
Functions
- 8:1 Distance-to-spot ratio
- Temperature range: -76˚ to 662˚F (-60˚ to 350˚C)
- Temperature probe
Applications
- Ambient or liquid temperatures
- Check equipment temperatures
SPECIFICATIONS
| Infrared Mode | |||
| Measurement Range | -76˚ to 662˚F (-60˚ to 350˚ C) | ||
| Operating Range | 32˚ to 122˚F (0˚ to 50˚C) | ||
| Accuracy | +0.05° per degree ±4°F (2°C) | ||
| (Tobj= 59˚ to 95˚F, Tamb=77˚F) | |||
| Accuracy (Tamb=73.4˚F(±5.4˚)) | -76˚ to 32˚F (-60˚ to 0˚ C) ±(1.8˚F +1.8˚±(1˚C +0.1˚)) 33˚ to 149˚F (0˚ to 65˚ C) ±(1.8˚F ±(1˚C)) 150˚ to 662˚F (65˚ to 350˚ C) ±(1.5% rdg °F°/C) | ||
| Emissivity Range | 0.95 Default Adjustable 0.1 to 1 | ||
| Resolution | 0.5˚F (0.2˚C) otherwise 1˚F/˚C | ||
| (-9.9˚ to 199.9˚F/C) | |||
| Distance-to-Spot Ratio | 8:01 | ||
| Dimensions | 6.62" x 1.55" x 2.08" | ||
| Weight | 5.11 oz | ||
| Battery Life | Typical 14 hrs and 18 min., continous use (alkaline, with laser) (Auto power off after 15 seconds) | ||
| Probe Mode | |||
| Measurement Range | -76˚ to 662˚F (-60˚ to 350˚ C) | ||
| Operating Range | 32˚ to 122˚F (0˚ to 50˚C) | ||
| Accuracy (Tobj=59˚to95˚F,Tamb=77˚F) | Below 23˚F (-5˚C) ±(0.18˚F ±(1˚C)) 24˚ to 149˚F (-6˚ to 65˚ C) ±(1.8˚F ±(0.5˚C)) above 150˚F (above 65˚C) ±(1% rdg ˚F/˚C) | ||
