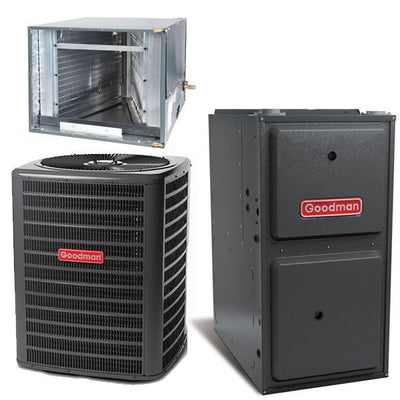

Goodman 2.5 Ton Cooling 14.5 SEER; 60k BTU Heating; 97% AFUE Gas Electric Air Conditioner System

Availability:
In-Stock

Product Includes 4 items:
(1) Goodman 98% AFUE 60,000 BTU Variable Speed Upflow/Horizontal Gas Furnace (GMVM970603BN);
(1) Goodman 2.5 Ton 14 SEER Air Conditioner Condenser w/ R410A Refrigerant (GSX140311);
(1) Goodman 3 Ton 17.5 in. Air Conditioner Horizontal Cased Coil (CHPF3636B6)
(1) Goodman 2.5 to 3 Ton Air Conditioner TXV Kit R410A Refrigerant (TX3N4)
Air Conditioner TXV Kit is sold separately!

Title

For pricing and to purchase this product:

Please register, login, or contact us for a quote request

PRODUCT INFO

  Goodman GMVM970603BN Gas Furnace Heater
The Goodman GMVM97 High-Efficiency Gas Furnace with two-stage gas valve and a multi-speed circulating blower provides efficient and economical performance.The Goodman GMVM97 97% AFUE Two Stage, ECM Motor, Multi position Upflow/Horizontal, ComfortNet Compatible, Series GMVM970603BN Gas Furnace Heaters.

Product Features

  • Low continuous fan speed
  • Color-coded low-voltage terminals
  • Self-diagnostic control board
  • Quiet two-speed induced draft blower
  • Durable Silicon Nitride igniter
  • Two-stage gas valve provides quiet, economical heating
  • Stainless-steel secondary heat exchanger
  • Heavy-duty, aluminized-steel tubular heat exchanger
  • Energy-efficient, multi-speed ECM blower motor

  Goodman GSX140311 Air Conditioner Condenser
You can count on The Goodman GSX140311 Air Conditioner Condenser to keep you cool on even the hottest summer days. The high efficiency compressor operates in tandem with a high-efficiency coil, cooling your home effectively. And if that's not enough, Goodman goes one step farther: they install a liquid-line filter dryer in every air conditioner we build. The filter dryer prevents moisture and debris from entering the compressor motor and expansion device, thus helping to extend the life of the system. Many manufacturers leave this step out, but Goodman install filter dryers in all of our air conditioners. Please note that this product is regulated by DOE Efficiency Standards.

  Goodman CHPF3636B6 Horizontal Cased Indoor Air Conditioner Evaporator Coil
The Goodman CHPF3636B6 Horizontal Cased Indoor Air Conditioner Evaporator Coil is made for use with split-system air conditioners or heating and Evaporator systems. The Goodman Air Conditioning and Heating Company has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market. Goodman CHPF3636B6 Horizontal Cased Indoor Air Conditioner Evaporator Coil lives up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials and spot-on manufacturing. So, no matter where you live or whether your home is small or large, Goodman probably has a solution to help keep your home comfortable.

SPECIFICATIONS

General Information
Operating Mode Heating and Cooling
Modulating/Staging Modulating
Blower MotorECM Multi-Speed
Coil Width17.5 Inches
ConfigurationHorizontal
DOE Regional ComplianceNationwide (Except CA)
Performance
AFUE97 %
Capacity2.5 Tons
Cooling Capacity28000 BTU
Heating BTU60000
SEER14.5
EER12.2
Maximum Air Flow1040 CFM
Dimensions
Product Weight332 Pounds
Shipping Weight350 Pounds
Certifications
AHRI CertifiedYes
ETL ListedYes
AHRI Reference Number7516536



  Goodman GSX140311 Air Conditioner Condenser
Capacities
Nominal Cooling (BTU/h)30,000
SEER / EER14 /12.2
Decibels72
Compressor
RLA12.8
LRA67.8
Condenser Fan Motor
Horsepower1/6
FLA0.95


Goodman TX3N4 Air Conditioner TXV Kit
General Information
TypeTXV Kit
Product LineTX
Refrigerant TypeR-410A
UPC193031106183


Dimensions
Product Weight1 Pound
Shipping Weight2 Pounds
Goodman GMVM970603BN Gas Furnace Heater
General Information
TypeGas Furnace
Product LineGMVM97
Fuel TypeNatural Gas
Vent TypeDirect Vent
Modulating/Staging Modulating
Blower MotorECM Variable-Speed
ConfigurationUpflow/Horizontal
Gas Conversion KitAvailable
Installation AvailableYes
UPC663051469488
Performance
AFUE 97 %
Heating BTU60000
High Fire Input60000 BTU
High Fire Output58200  BTU
Low Fire Input30000 BTU
Low Fire Output29100 BTU
Maximum Air Flow1200 CFM
Ultra Low NOx EmissionsNo
Low NOx EmissionsYes



Goodman CHPF3636B6 Air Conditioner Evaporator Coil
General Information
TypeEvaporator Coil
Product LineCHPF
Refrigerant TypeR-410A
CasingCased
Style A Coil
ConfigurationHorizontal
Installation AvailableYes
UPC663051541115
Performance
Capacity3 Tons
Cooling BTU36000
