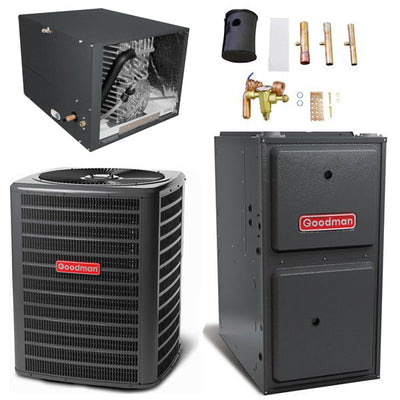

Goodman 2.5 Ton Cooling 14.5 SEER; 80k BTU Heating; 96% AFUE Gas Electric Air Conditioner System

Availability:
In-Stock

Product Includes 4 items:
(1) Goodman 96% AFUE 80,000 BTU Variable Speed Upflow/Horizontal Gas Furnace (GMVC960804CN);
(1) Goodman 2.5 Ton 14 SEER Air Conditioner Condenser w/ R410A Refrigerant (GSX140311);
(1) Goodman 3 to 3.5 Ton 21 in. High Air Conditioner Horizontal Cased Coil (CHPF3642C6)
(1) Goodman 2.5 to 3 Ton Air Conditioner TXV Kit R410A Refrigerant (TX3N4)

Title

For pricing and to purchase this product:

Please register, login, or contact us for a quote request

PRODUCT INFO

  Overview for Goodman GMVC960804CN Gas Furnace Heater

Heavy-Duty Aluminized-Steel Heat Exchanger - Distinctive tubular aluminized-steel construction formed using wrinkle bend technology results in an extremely durable heat exchanger. Paired with a stainless-steel secondary heat exchanger, this combination provides reliability, durability and efficiency.
Two-Stage Gas Valve - The Goodman GMVC96 96% AFUE Two Stage, ECM Motor, Multi position Upflow/Horizontal ComfortNet Compatible GMVC960804CN reduces energy needed during moderate demand to deliver outstanding comfort and efficiency as compared to single-stage gas valves. Goodman gas furnaces simply work the way they're supposed to, making each one a thing of beauty.
Multi-Speed ECM Motor - Automatically adjusts airflow to match comfort needs, reduces energy consumption and system noise as compared to single-stage motors.
Quiet, Two-Speed, Induced-Draft Blower - Provides precise control and enhanced energy-efficient performance as compared to a natural draft furnace.
Durable 110-Volt Silicon Nitride Igniter - Eliminates the need for an energy-wasting pilot light.
Self-Diagnostic Control Board - Silently and consistently monitors the gas furnace to ensure the GMVC960804CN furnace components are all working properly and helps to achieve the energy efficient performance too. Also the gas furnace stores the last diagnostic codes in memory; and indicates through a flashing LED for quick troubleshooting of the Goodman GMVC96 96% AFUE Two Stage, ECM Motor, Multi position Upflow/Horizontal ComfortNet Compatible Series GMVC960804CN gas furnace.
Thermally Insulated Cabinet - The fully insulated cabinet means air leakage of less than 2% to maximize the heat transfer efficiency and lower blower noise.

Goodman GSX140311 Air Conditioner Condenser

Energy-Efficient Scroll Compressor - Inside of the Goodman GSX140311 air conditioners you will find compressors designed to provide years of reliable cooling comfort, it provides 14 SEER cooling performance for lower energy bills compared to lower SEER units.
Single-Speed Condenser Fan Motor - With advanced fan design, it provides dependable, quiet airflow across the condensing coil. The Goodman GSX140311 air conditioners simply work the way they're supposed to, making each one a thing of beauty.
Efficient Cooling Capacity - Five millimeter, refrigeration-grade premium copper tubing and aluminum fin condenser coil configuration deliver outstanding heat transfer properties with R-410A, chlorine-free, refrigerant.
Heavy-Gauge, Galvanized Steel Enclosure Cabinet - A louvered cabinet protects the coil, while its appliance-quality, post-paint, baked enamel finish protects your system from outdoor elements.
Factory-Installed In-Line Filter Drier - Protects the refrigerant system from dirt and moisture for longer service life compared to units without filter driers.
Quiet Operation - An acoustically engineered sound control blanket helps reduce noise levels compared to units without sound control blankets.

  Overview for Goodman CHPF3642C6 Horizontal Cased Indoor Air Conditioner Evaporator Coil

Aluminum Tube and Aluminum Fin Coil Construction - Provides time-tested and proven heat transfer efficiency designed to resist potential corrosion.
Grooved Aluminum Tubing - Offers increased surface area for efficient heat transfer performance by the unit's refrigerant.
Every Unit Is Helium Pressure - Tested - During assembly to help ensure high levels of product quality. Helium is used, in part, because its molecules are smaller than oxygen. It's just one extra step taken to help ensure a high quality product.
Every All-Aluminum Coil - Receives finished pressure testing and leak sniffing by hound-dog vacuum testing. This is a secondary test every unit receives before it leaves the factory.

SPECIFICATIONS

General Information
Operating Mode Heating and Cooling
ConfigurationHorizontal
Performance
AFUE96 %
Capacity2.5 Tons
Cooling Capacity30000 BTU
Heating BTU80000
SEER14.5
EER12.2
Maximum Air Flow1000 CFM
Dimensions
Product Weight367 Pounds
Shipping Weight386 Pounds
Certifications
AHRI CertifiedYes
ETL ListedYes
AHRI Reference Number201202016



  Goodman GSX140311 Air Conditioner Condenser
Capacities
Nominal Cooling (BTU/h)30,000
SEER / EER14/12.2
Decibels72
Compressor
RLA12.8
LRA67.8
TypeScroll
Condenser Fan Motor
Horsepower1/6
FLA0.95



General Information
TypeTXV Kit
Product LineTX
Refrigerant TypeR-410A
UPC
193031106183


Dimensions
Product Weight1 Pound
Shipping Weight2 Pounds
Goodman GMVC960804CN Gas Furnace Heater
General Information
TypeGas Furnace
Product LineGMVC96
Fuel TypeNatural Gas
Vent TypeDirect Vent
Modulating/Staging Two Stage
Blower MotorECM Variable-Speed
ConfigurationUpflow/Horizontal
Gas Conversion KitAvailable
Installation AvailableYes
UPC663051560987
Performance
AFUE 96 %
Heating BTU80000
High Fire Input80000 BTU
High Fire Output76800 BTU
Low Fire Input56000 BTU
Low Fire Output53760 BTU
Maximum Air Flow1600 CFM
Ultra Low NOx EmissionsNo
Low NOx Emissions
Yes



Goodman CHPF3642C6 Air Conditioner Evaporator Coil
General Information
TypeEvaporator Coil
Product LineCHPF
Refrigerant TypeR-410A
CasingCased
Style A Coil
ConfigurationHorizontal
Installation AvailableYes
UPC663051541122
Performance
Capacity3 - 3.5 Tons
Cooling BTU42000
Nominal Minimum Cooling Capacity36000 BTU
