Goodman 2 Ton Cooling 14.5 SEER; 80k BTU Heating; 96% AFUE Gas Electric Air Conditioner System

Availability:
In-Stock

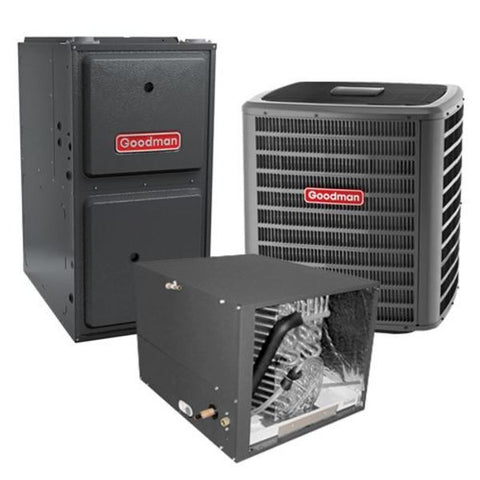

Product Includes 3 items:
(1) Goodman 96% AFUE 80,000 BTU 2 Stage Upflow/Horizontal Gas Furnace Heater (GMEC960803BN);
(1) Goodman 2 Ton 14 SEER Air Conditioner Condenser w/ R410A Refrigerant (GSX140251);
(1) Goodman 3 Ton 17.5 in. Air Conditioner Horizontal Cased Coil (CHPF3636B6)
Air Conditioner TXV Kit is sold separately!

Title

For pricing and to purchase this product:

Please register, login, or contact us for a quote request

PRODUCT INFO

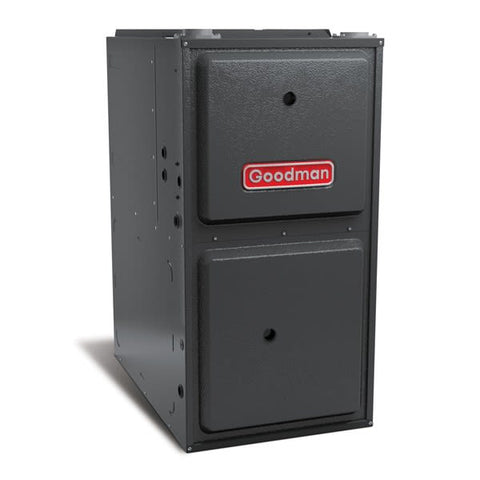

  Overview for Goodman GMEC960803BN Gas Furnace Heater
The Goodman GMEC96 High-Efficiency Gas Furnace with two-stage gas valve and a multi-speed circulating blower provides efficient and economical performance. The Goodman GMEC96 96% AFUE Two Stage, ECM Motor, Multi position Upflow/Horizontal, ComfortNet Compatible, Series GMEC960803BN Gas Furnace Heaters.

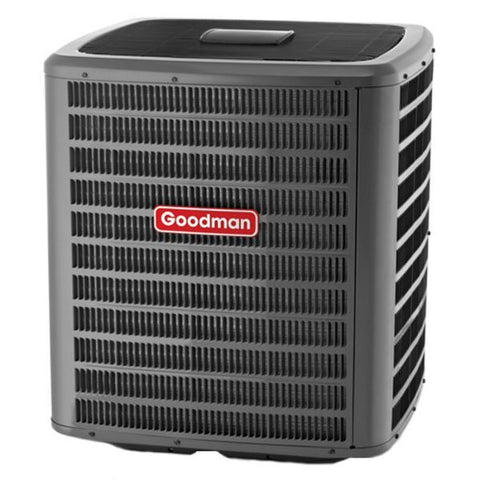

  Overview for Goodman GSX140251 Air Conditioner Condenser
You can count on The Goodman GSX140251 Air Conditioner Condenser to keep you cool on even the hottest summer days. The high efficiency compressor operates in tandem with a high-efficiency coil, cooling your home effectively. And if that's not enough, Goodman goes one step farther: they install a liquid-line filter dryer in every air conditioner we build. The filter dryer prevents moisture and debris from entering the compressor motor and expansion device, thus helping to extend the life of the system. Many manufacturers leave this step out, but Goodman install filter dryers in all of our air conditioners. Please note that this product is regulated by DOE Efficiency Standards.

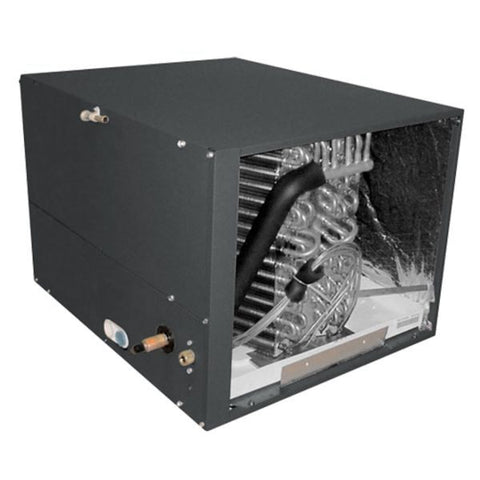

  Overview for Goodman CHPF3636B6 Horizontal Cased Indoor Air Conditioner Evaporator Coil
The CHPF3636B6 is a cased A coil for use in horizontal airflow applications. The all-aluminum construction and advanced design of this coil improve its durability and heat transfer efficiency. Whether you're replacing a failing coil or installing a new system, you can choose the CHPF with confidence. Goodman pressure tests each coil twice before it leaves the factory and backs them with an excellent warranty.

SPECIFICATIONS

General Information
Operating Mode Heating and Cooling
Modulating/Staging Two Stage
Blower MotorECM Multi-Speed
Coil Width17.5 Inches
ConfigurationHorizontal
DOE Regional ComplianceNationwide (Except CA)
Performance
AFUE96 %
Capacity2.0 Tons
Cooling Capacity23400 BTU
Heating BTU80000
SEER14.5
EER12.2
Maximum Air Flow750 CFM
Dimensions
Product Weight304 Pounds
Shipping Weight321 Pounds
Certifications
AHRI CertifiedYes
ETL ListedYes
AHRI Reference Number8711517



  Goodman GSX140251 Air Conditioner Condenser
Capacities
Nominal Cooling (BTU/h)24,000
SEER / EER14/12.2
Decibels71
Compressor
RLA13.5
LRA58.3
Condenser Fan Motor
Horsepower1/8
FLA0.7
Goodman GMEC960803BN Gas Furnace Heater
General Information
TypeGas Furnace
Product LineGMEC96
Fuel TypeNatural Gas
Vent TypeDirect Vent
Modulating/Staging Two Stage
Blower MotorECM Multi-Speed
ConfigurationUpflow/Horizontal
Gas Conversion KitAvailable
Installation AvailableYes
UPC663051553941
Performance
AFUE 96 %
Heating BTU80000
High Fire Input80000 BTU
High Fire Output76800 BTU
Low Fire Input56000 BTU
Low Fire Output53760 BTU
Maximum Air Flow1200 CFM
Ultra Low NOx EmissionsNo
Low NOx EmissionsYes



Goodman CHPF3636B6 Air Conditioner Evaporator Coil
General Information
TypeEvaporator Coil
Product LineCHPF
Refrigerant TypeR-410A
CasingCased
Style A Coil
ConfigurationHorizontal
Installation AvailableYes
UPC663051541115
Performance
Capacity3 Tons
Cooling BTU36000
Nominal Minimum Cooling Capacity36000 BTU
