Goodman 3.5 Ton Cooling 14.5 SEER; 100k BTU Heating; 80% AFUE Gas Electric Air Conditioner System

Availability:
In-Stock

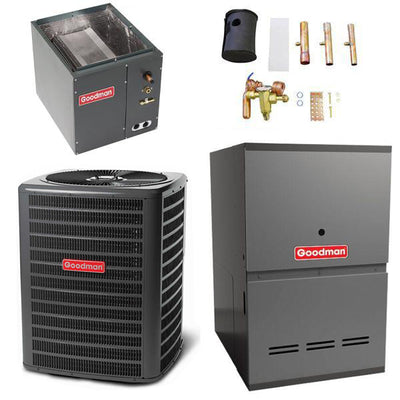

Product Includes 4 items:
(1) Goodman 80% AFUE 100,000 BTU 2-Stage Downflow/Horizontal Gas Furnace (GCVC81005CX);
(1) Goodman 3.5 Ton 14 SEER Air Conditioner Condenser w/ R410A Refrigerant (GSX140431);
(1) Goodman 4 to 5 Ton 21 in. Wide Air Conditioner Evaporator Cased Coil (CAPF4961C6)
(1) Goodman 3.5 to 5 Ton Air Conditioner TXV Kit R410A Refrigerant (TX5N4)

Title

For pricing and to purchase this product:

Please register, login, or contact us for a quote request

PRODUCT INFO

  Goodman GCVC81005CX Gas Furnace Heater
The Goodman GCVC80 High-Efficiency Gas Furnace with Two Stage gas valve and a multi-speed circulating blower provides efficient and economical performance.The Goodman GCVC80 80% AFUE Two Stage, ECM Motor, Multi position Downflow/Horizontal, ComfortNet Compatible, Series GCVC81005CX Gas Furnace Heaters.

Product Features

  • Low continuous fan speed
  • Color-coded low-voltage terminals
  • Self-diagnostic control board
  • Quiet two-speed induced draft blower
  • Durable Silicon Nitride igniter
  • Two-stage gas valve provides quiet, economical heating
  • Stainless-steel secondary heat exchanger
  • Heavy-duty, aluminized-steel tubular heat exchanger
  • Energy-efficient, multi-speed ECM blower motor

  Goodman GSX140431 Air Conditioner Condenser
You can count on The Goodman GSX140431 Air Conditioner Condenser to keep you cool on even the hottest summer days. The high efficiency compressor operates in tandem with a high-efficiency coil, cooling your home effectively. And if that's not enough, Goodman goes one step farther: they install a liquid-line filter dryer in every air conditioner we build. The filter dryer prevents moisture and debris from entering the compressor motor and expansion device, thus helping to extend the life of the system. Many manufacturers leave this step out, but Goodman install filter dryers in all of our air conditioners. Please note that this product is regulated by DOE Efficiency Standards.

The Goodman CAPF4961C6 Air Conditioner Evaporator Cased Coil
The CAPF4961C6 is a cased A coil for use in upflow or downflow applications. The all-aluminum construction and advanced design of this coil improve its durability and heat transfer efficiency. Whether you're replacing a failing coil or installing a new system, you can choose the CAPF with confidence. Goodman pressure tests each coil twice before it leaves the factory and backs them with an excellent warranty.

All-Aluminum Coil
Goodman's evaporator coils use a reliable all-aluminum design featuring sine fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.

Secure Cabinet
A galvanized, embossed, and insulated cabinet protects this coil and prevents air leakage, providing superior longevity and efficiency.

Condensate Management
The CAPF features foil-faced insulation to inhibit the formation of condensate and a rust-resistant thermoplastic drain pan to capture what does form, keeping your system safe and operationa

Multi-Refrigerant Compatibility
R-22 refrigerant is no longer in production, but many older systems still use it. The CAPF is compatible with both R-22 and its replacement, R-410A. This makes it the perfect fit for any homeowner.

Extended Warranty
Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.

SPECIFICATIONS

General Information
Operating Mode Heating and Cooling
Modulating/Staging Two Stage
Blower MotorECM Variable-Speed
Coil Width21 Inches
ConfigurationDownflow
DOE Regional ComplianceNationwide
Performance
AFUE80 %
Capacity3.5 Tons
Cooling Capacity39000 BTU
Nominal Cooling Capacity
42000 BTU
Heating BTU100000
SEER14.5
EER12.2
Maximum Air Flow1370 CFM
Dimensions
Product Weight392 Pounds
Shipping Weight411 Pounds
Certifications
AHRI CertifiedYes
ETL ListedYes
AHRI Reference Number8082427



  Goodman GSX140431 Air Conditioner Condenser
Capacities
Nominal Cooling (BTU/h)42,000
SEER / EER14 /12.2
Decibels73
Compressor
RLA16.7
LRA79
TypeScroll
Condenser Fan Motor
Horsepower1/6
FLA0.95



Goodman TX5N4 Air Conditioner TXV Kit
General Information
TypeTXV Kit
Product LineTX
Refrigerant TypeR-410A
UPC
193031106206


Dimensions
Product Weight1 Pound
Shipping Weight2 Pounds
Goodman GCVC81005CX Gas Furnace Heater
General Information
TypeGas Furnace
Product LineGCVC80
Fuel TypeNatural Gas
Vent TypeChimney Vent
Modulating/Staging Two Stage
Blower MotorECM Variable-Speed
ConfigurationDownflow/Horizontal
Gas Conversion KitAvailable
Installation AvailableYes
UPC663051567313
Performance
AFUE 80 %
Heating BTU100000
High Fire Input100000 BTU
High Fire Output80000  BTU
Low Fire Input70000 BTU
Low Fire Output56000BTU
Maximum Air Flow2000 CFM
Ultra Low NOx EmissionsNo
Low NOx EmissionsYes



Goodman CAPF4961C6 Air Conditioner Evaporator Coil
General Information
TypeEvaporator Coil
Product LineCAPF
Refrigerant TypeR-410A
CasingCased
Style A Coil
ConfigurationUpflow/Downflow
Installation AvailableYes
UPC663051541016
Performance
Capacity4 - 5 Tons
Cooling BTU60000
Nominal Minimum Cooling Capacity48000 BTU
