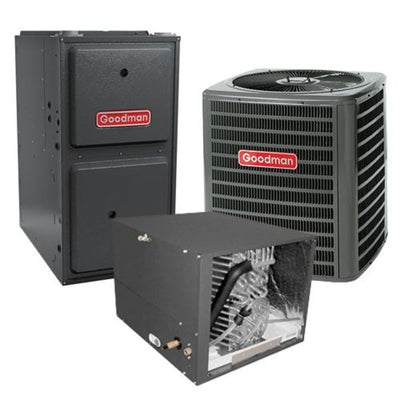

Goodman 3.5 Ton Cooling 14.5 SEER; 120k BTU Heating; 96% AFUE Gas Electric Air Conditioner System

Availability:
Out-Stock

Product Includes 3 items:
(1) Goodman 96% AFUE 120,000 BTU 2 Stage Upflow/Horizontal Gas Furnace Heater (GMEC961205DN);
(1) Goodman 3.5 Ton 16 SEER Air Conditioner Condenser w/ R410A Refrigerant (GSX160421);
(1) Goodman 4 to 5 Ton 24.5 in. High Air Conditioner Horizontal Cased Coil (CHPF4860D6)
Non-Bleed Air Conditioner TXV Kit is sold separately!

For pricing and to purchase this product:

Please register, login, or contact us for a quote request

PRODUCT INFO

  Goodman GMEC961205DN Gas Furnace Heater
The Goodman GMEC96 High-Efficiency Gas Furnace with Two Stage gas valve and a multi-speed circulating blower provides efficient and economical performance.The Goodman GMEC96 96% AFUE Two Stage, ECM Motor, Multi position Upflow/Horizontal, ComfortNet Compatible, Series GMEC961205DN Gas Furnace Heaters.

Product Features

  • Low continuous fan speed
  • Color-coded low-voltage terminals
  • Self-diagnostic control board
  • Quiet two-speed induced draft blower
  • Durable Silicon Nitride igniter
  • Two-stage gas valve provides quiet, economical heating
  • Stainless-steel secondary heat exchanger
  • Heavy-duty, aluminized-steel tubular heat exchanger
  • Energy-efficient, multi-speed ECM blower motor

  Goodman GSX160421 Air Conditioner Condenser
You can count on The Goodman GSX160421 Air Conditioner Condenser to keep you cool on even the hottest summer days. The high efficiency compressor operates in tandem with a high-efficiency coil, cooling your home effectively. And if that's not enough, Goodman goes one step farther: they install a liquid-line filter dryer in every air conditioner we build. The filter dryer prevents moisture and debris from entering the compressor motor and expansion device, thus helping to extend the life of the system. Many manufacturers leave this step out, but Goodman install filter dryers in all of our air conditioners. Please note that this product is regulated by DOE Efficiency Standards.

  Goodman CHPF4860D6 Horizontal Cased Indoor Air Conditioner Evaporator Coil
The Goodman CHPF4860D6 Horizontal Cased Indoor Air Conditioner Evaporator Coil is made for use with split-system air conditioners or heating and Evaporator systems. The Goodman Air Conditioning and Heating Company has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market. Goodman CHPF4860D6 Horizontal Cased Indoor Air Conditioner Evaporator Coil lives up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials and spot-on manufacturing. So, no matter where you live or whether your home is small or large, Goodman probably has a solution to help keep your home comfortable.

SPECIFICATIONS

General Information
Operating Mode Heating and Cooling
ConfigurationHorizontal
Performance
AFUE96 %
Capacity3.5 Tons
Cooling Capacity40000 BTU
Nominal Cooling Capacity42000 BTU
Heating BTU120000
SEER14.5
EER12.2
Maximum Air Flow1300 CFM
Dimensions
Product Weight437 Pounds
Shipping Weight459 Pounds
Certifications
AHRI CertifiedYes
ETL ListedYes
AHRI Reference Number7365872



  Goodman GSX160421 Air Conditioner Condenser
Capacities
Nominal Cooling (BTU/h)42,000
SEER / EER16 /12.2
Decibels73
Compressor
RLA17,9
LRA112
Condenser Fan Motor
Horsepower1/6
FLA0.95


Goodman GMEC961205DN Gas Furnace Heater
General Information
TypeGas Furnace
Product LineGMEC96
Fuel TypeNatural Gas
Vent TypeDirect Vent
Modulating/Staging Two Stage
Blower MotorECM Multi-Speed
ConfigurationUpflow/Horizontal
Gas Conversion KitAvailable
Installation AvailableYes
UPC663051553989
Performance
AFUE 96 %
Heating BTU120000
High Fire Input120000 BTU
High Fire Output115200 BTU
Low Fire Input84000 BTU
Low Fire Output80640 BTU
Maximum Air Flow2000 CFM
Ultra Low NOx EmissionsNo
Low NOx EmissionsYes



Goodman CHPF4860D6 Air Conditioner Evaporator Coil
General Information
TypeEvaporator Coil
Product LineCHPF
Refrigerant TypeR-410A
CasingCased
Style A Coil
ConfigurationHorizontal
Installation AvailableYes
UPC663051541160
Performance
Capacity4 - 5 Tons
Cooling BTU60000
Nominal Minimum Cooling Capacity48000 BTU
