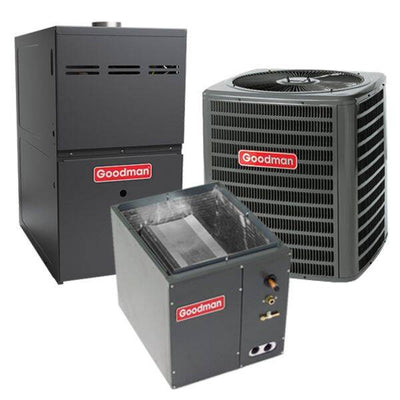

Goodman 4 Ton Cooling 14 SEER; 80k BTU Heating; 80% AFUE Gas Electric Air Conditioner System
Product Includes 3 items:
(1) Goodman 80% AFUE 80,000 BTU 2 Stage Upflow/Horizontal Variable Speed Gas Furnace (GMVC80805DX);
(1) Goodman 4 Ton 14 SEER Air Conditioner Condenser with R410A Refrigerant (GSX140481);
(1) Goodman 4 to 5 Ton 24.5 in. Wide Air Conditioner Evaporator Cased Coil (CAPF4961D6)
Non-Bleed Air Conditioner TXV Kit is sold separately!
PRODUCT INFO
Goodman GMVC80805DX Gas Furnace Heater
The Goodman GMVC80 High-Efficiency Gas Furnace with Two Stage gas valve and a multi-speed circulating blower provides efficient and economical performance.The Goodman GMVC80 80% AFUE Two Stage, ECM Motor, Multi position Upflow/Horizontal, ComfortNet Compatible, Series GMVC80805DX Gas Furnace Heaters.
Product Features
- Low continuous fan speed
- Color-coded low-voltage terminals
- Self-diagnostic control board
- Quiet two-speed induced draft blower
- Durable Silicon Nitride igniter
- Two-stage gas valve provides quiet, economical heating
- Stainless-steel secondary heat exchanger
- Heavy-duty, aluminized-steel tubular heat exchanger
- Energy-efficient, multi-speed ECM blower motor
Goodman GSX140481 Air Conditioner Condenser
You can count on The Goodman GSX140481 Air Conditioner Condenser to keep you cool on even the hottest summer days. The high efficiency compressor operates in tandem with a high-efficiency coil, cooling your home effectively. And if that's not enough, Goodman goes one step farther: they install a liquid-line filter dryer in every air conditioner we build. The filter dryer prevents moisture and debris from entering the compressor motor and expansion device, thus helping to extend the life of the system. Many manufacturers leave this step out, but Goodman install filter dryers in all of our air conditioners. Please note that this product is regulated by DOE Efficiency Standards.
Goodman CAPF4961D6 Upflow/Downflow Cased Indoor Air Conditioner Evaporator Coil
The Goodman CAPF4961D6 Upflow/Downflow Cased Indoor Air Conditioner Evaporator Coil is made for use with split-system air conditioners or heating and Evaporator systems. The Goodman Air Conditioning and Heating Company has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market. Goodman CAPF4961D6 Upflow/Downflow Cased Indoor Air Conditioner Evaporator Coil lives up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials and spot-on manufacturing. So, no matter where you live or whether your home is small or large, Goodman probably has a solution to help keep your home comfortable.
SPECIFICATIONS
General Information | |
Operating Mode | Heating and Cooling |
Modulating/Staging | Two Stage |
Blower Motor | ECM Variable-Speed |
Coil Width | 21.5 Inches |
Configuration | Upflow |
DOE Regional Compliance | Nationwide |
Performance | |
AFUE | 80 % |
Capacity | 4.0 Tons |
Cooling Capacity | 46000 BTU |
Nominal Cooling Capacity | 48000 BTU |
Heating BTU | 80000 |
SEER | 14.0 |
EER | 11.7 |
Maximum Air Flow | 1550 CFM |
Dimensions | |
Product Weight | 416 Pounds |
Shipping Weight | 439 Pounds |
Certifications | |
AHRI Certified | Yes |
ETL Listed | Yes |
AHRI Reference Number | 201260975 |
Goodman GSX140481 Air Conditioner Condenser | |
Capacities | |
Nominal Cooling (BTU/h) | 48,000 |
SEER / EER | 14 /11.7 |
Decibels | 74 |
Compressor | |
RLA | 19.9 |
LRA | 109 |
Condenser Fan Motor | |
Horsepower | 1/4 |
FLA | 1.3 |
Goodman GMVC80805DX Gas Furnace Heater | |
General Information | |
Type | Gas Furnace |
Product Line | GMVC80 |
Fuel Type | Natural Gas |
Vent Type | Chimney Vent |
Modulating/Staging | Two Stage |
Blower Motor | ECM Variable-Speed |
Configuration | Upflow/Horizontal |
Gas Conversion Kit | Available |
Installation Available | Yes |
UPC | 663051567436 |
Performance | |
AFUE | 80 % |
Heating BTU | 80000 |
High Fire Input | 80000 BTU |
High Fire Output | 64000 BTU |
Low Fire Input | 56000 BTU |
Low Fire Output | 44800 BTU |
Maximum Air Flow | 2000 CFM |
Ultra Low NOx Emissions | No |
Low NOx Emissions | Yes |
Goodman CAPF4961D6 Air Conditioner Evaporator Coil | |
General Information | |
Type | Evaporator Coil |
Product Line | CAPF |
Refrigerant Type | R-410A |
Casing | Cased |
Style | A Coil |
Configuration | Upflow/Downflow |
Installation Available | Yes |
UPC | 663051541023 |
Performance | |
Capacity | 4 - 5 Tons |
Cooling BTU | 60000 |
Nominal Minimum Cooling Capacity | 48000 BTU |
