Goodman 5 Ton Cooling 14.5 SEER; 100k BTU Heating; 96% AFUE Gas Electric Air Conditioner System

Availability:
In-Stock

Product Includes 4 items:
(1) Goodman 96% AFUE 100,000 BTU 1 Stage Downflow/Horizontal Gas Furnace Heater (GCES961005CN);
(1) Goodman 5 Ton 16 SEER Air Conditioner Condenser w/ R410A Refrigerant (GSX160601);
(1) Goodman 4 to 5 Ton 21 in. Wide Air Conditioner Evaporator Cased Coil (CAPF4961C6)
(1) Goodman 4 Ton Air Conditioner TXV Kit R410A Refrigerant (TXV-60)

Title

For pricing and to purchase this product:

Please register, login, or contact us for a quote request

PRODUCT INFO

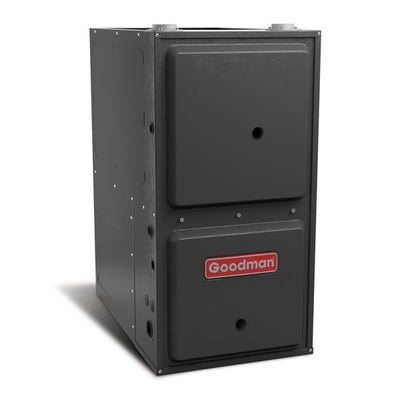

  Goodman GCES961005CN Gas Furnace Heater
The Goodman GCES96 High-Efficiency Gas Furnace with single-stage gas valve and a multi-speed circulating blower provides efficient and economical performance.The Goodman GCES96 96% AFUE Single Stage, ECM Motor, Multi position Downflow/Horizontal, ComfortNet Compatible, Series GCES961005CN Gas Furnace Heaters.

Product Features

  • Low continuous fan speed
  • Color-coded low-voltage terminals
  • Self-diagnostic control board
  • Quiet two-speed induced draft blower
  • Durable Silicon Nitride igniter
  • Two-stage gas valve provides quiet, economical heating
  • Stainless-steel secondary heat exchanger
  • Heavy-duty, aluminized-steel tubular heat exchanger
  • Energy-efficient, multi-speed ECM blower motor

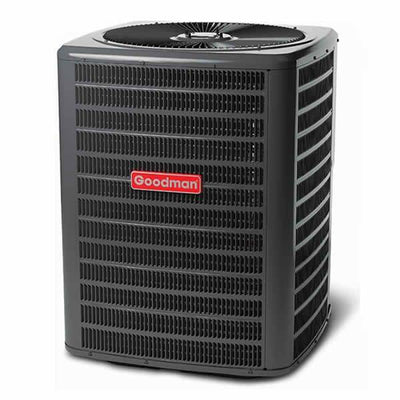

  Goodman GSX160601 Air Conditioner Condenser
You can count on The Goodman GSX160601 Air Conditioner Condenser to keep you cool on even the hottest summer days. The high efficiency compressor operates in tandem with a high-efficiency coil, cooling your home effectively. And if that's not enough, Goodman goes one step farther: they install a liquid-line filter dryer in every air conditioner we build. The filter dryer prevents moisture and debris from entering the compressor motor and expansion device, thus helping to extend the life of the system. Many manufacturers leave this step out, but Goodman install filter dryers in all of our air conditioners. Please note that this product is regulated by DOE Efficiency Standards.

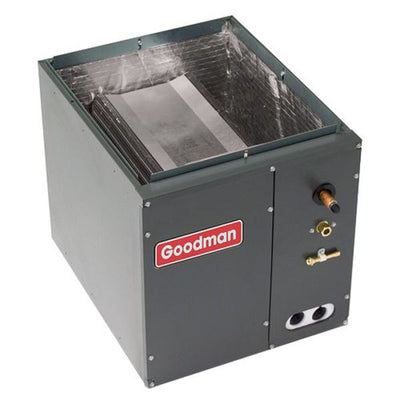

  Goodman CAPF4961C6 Upflow/Downflow Cased Indoor Air Conditioner Evaporator Coil
The Goodman CAPF4961C6 Upflow/Downflow Cased Indoor Air Conditioner Evaporator Coil is made for use with split-system air conditioners or heating and Evaporator systems. The Goodman Air Conditioning and Heating Company has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market. Goodman CAPF4961C6 Upflow/Downflow Cased Indoor Air Conditioner Evaporator Coil lives up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials and spot-on manufacturing. So, no matter where you live or whether your home is small or large, Goodman probably has a solution to help keep your home comfortable.

SPECIFICATIONS

General Information
Operating Mode Heating and Cooling
Modulating/Staging
Single Stage
Blower Motor
ECM Multi-Speed
Coil Width
21 Inches
ConfigurationDownflow
DOE Regional Compliance
Nationwide (Except CA)
Performance
AFUE96 %
Capacity5 Tons
Cooling Capacity52000 BTU
Nominal Cooling Capacity60000 BTU
Heating BTU100000
SEER14.5
EER12.2
Maximum Air Flow1610 CFM
Dimensions
Product Weight506 Pounds
Shipping Weight520 Pounds
Certifications
AHRI CertifiedYes
ETL ListedYes
AHRI Reference Number203488238



  Goodman GSX160601 Air Conditioner Condenser
Capacities
Nominal Cooling (BTU/h)54,000
SEER / EER16/12.5
Decibels73
Compressor
RLA21.4
LRA135
Condenser Fan Motor
Horsepower1/3
FLA2.80


Goodman GCES961005CN Gas Furnace Heater
General Information
TypeGas Furnace
Product LineGCES96
Fuel TypeNatural Gas
Vent TypeDirect Vent
Modulating/Staging Single Stage
Blower MotorECM Multi-Speed
ConfigurationDownflow/Horizontal
Gas Conversion KitAvailable
Installation AvailableYes
UPC663051590557
Performance
AFUE 96 %
Heating BTU100000
High Fire Input100000 BTU
High Fire Output95000 BTU
Maximum Air Flow2000 CFM
Ultra Low NOx EmissionsNo
Low NOx EmissionsYes



Goodman CAPF4961C6 Air Conditioner Evaporator Coil
General Information
TypeEvaporator Coil
Product LineCAPF
Refrigerant TypeR-410A
CasingCased
Style A Coil
ConfigurationUpflow/Downflow
Installation AvailableYes
UPC663051541016
Performance
Capacity4 - 5 Tons
Cooling BTU60000
Nominal Minimum Cooling Capacity48000 BTU
