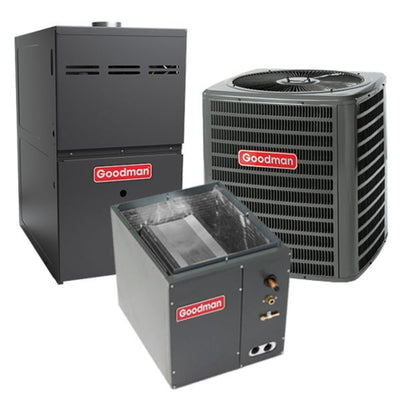

Goodman 5 Ton Cooling 14 SEER; 80k BTU Heating; 80% AFUE Gas Electric Air Conditioner System

Availability:
In-Stock

Product Includes 3 items:
(1) Goodman 80% AFUE 80,000 BTU 2 Stage Upflow/Horizontal Variable Speed Gas Furnace (GMVC80805DX);
(1) Goodman 5 Ton 14 SEER Air Conditioner Condenser with R410A Refrigerant (GSX140601);
(1) Goodman 4 to 5 Ton 24.5 in. Wide Air Conditioner Evaporator Cased Coil (CAPT4961D4)

Title

For pricing and to purchase this product:

Please register, login, or contact us for a quote request

PRODUCT INFO

The Goodman brand is one of the biggest names in home cooling and energy-efficient home comfort. That's because Goodman air conditioner condensers live up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials and spot-on manufacturing. So, no matter where you live or whether your home is small or large, Goodman probably has a solution to help keep your home comfortable.

  Overview for Goodman CAPT4961D4 Upflow/Downflow Cased Indoor Air Conditioner Evaporator Coil

The Goodman CAPT4961D4 Upflow/Downflow Cased Indoor Air Conditioner Evaporator Coil is made for use with split-system air conditioners or heating and Evaporator systems. The Goodman Air Conditioning and Heating Company has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market. Goodman CAPT4961D4 Upflow/Downflow Cased Indoor Air Conditioner Evaporator Coil lives up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials and spot-on manufacturing. So, no matter where you live or whether your home is small or large, Goodman probably has a solution to help keep your home comfortable.

Aluminum Tube and Aluminum Fin Coil Construction - Provides time-tested and proven heat transfer efficiency designed to resist potential corrosion.
Grooved Aluminum Tubing - Offers increased surface area for efficient heat transfer performance by the unit's refrigerant.
Every Unit Is Helium Pressure - Tested - During assembly to help ensure high levels of product quality. Helium is used, in part, because its molecules are smaller than oxygen. It's just one extra step taken to help ensure a high quality product.
Every All-Aluminum Coil - Receives finished pressure testing and leak sniffing by hound-dog vacuum testing. This is a secondary test every unit receives before it leaves the factory.

  Overview for Goodman GMVC80805DX Gas Furnace Heater

The Goodman GMVC80805DX air conditioners ultimately adhere to some old-fashioned values. Goodman believes in the integrity of the American worker and that is why Goodman brand heating and cooling systems are designed, engineered and assembled in the United States. The Goodman GMVC80805DX gas furnaces simply work the way they are supposed to, making each one a thing of beauty. When you talk about the Goodman GMVC80 up to 80% AFUE Two Stage, Variable Speed, Multi position Upflow/Horizontal ComfortNet Compatible Series GMVC80805DX it is considered as the art of precision.

Advanced Heat Exchanger Design
The GMVM97 furnace employs a reliable dual-diameter tubular heat exchanger design. Aluminized steel is used for incredibly efficient heat transfer, and a wrinkle-bend is applied to the tubes to enhance the heat exchanger's dependability and longevity.

Secondary Heat Exchanger
This furnace produces addition heat by directing combustion gases through a secondary heat exchanger before they are vented. The secondary heat exchanger is made of corrosion-resistant stainless steel and it is sloped to prevent condensate build-up.

Quiet Comfort
The blower of the GMVM971205DN was selected for its incredibly low sound levels. Additionally, this unit offers an airflow system and fan speed options that allow it to operate quietly while providing consistent comfort.

Venting Options
The GMVM971205DN offers several venting options to streamline installation in a variety of applications. It can be used in either a two-pipe direct vent setup or a single-pipe configuration with combustion air.

Secure Cabinet
All GMVM97 furnaces are protected by a durable steel cabinet rated for less than 2% air leakage. The heat exchanger section is insulated to prevent heat loss and the return side of the cabinet is solid and airtight.

ComfortBridge Compatible
This furnace is compatible with Goodman's ComfortBridge communicating controls. ComfortBridge control streamlines the installation and maintenance processes further by automatically detecting your equipment and providing diagnostics and troubleshooting.

Auto-Comfort
Goodman's Auto-Comfort mode is available in applications where the GMVM971205DN is used to distribute cooled air. This mode scales output up to the cooling demand in stages for improved comfort, efficiency, and dehumidification.

Easy Integration
The GMVM971205DN makes it simple to enhance your system with a humidifier and an electronic air cleaner; just wire them directly to the low-voltage terminals on the control board.

  Overview for Goodman GSX140601 Air Conditioner Condenser

You can count on The Goodman GSX140601 Air Conditioner Condenser to keep you cool on even the hottest summer days. The high efficiency compressor operates in tandem with a high-efficiency coil, cooling your home effectively. And if that's not enough, Goodman goes one step farther: they install a liquid-line filter dryer in every air conditioner we build. The filter dryer prevents moisture and debris from entering the compressor motor and expansion device, thus helping to extend the life of the system. Many manufacturers leave this step out, but Goodman install filter dryers in all of our air conditioners.

  • Energy-efficient compressor
  • Single-speed condenser fan motor
  • Factory-installed filter drier
  • Copper tube/aluminum fin coil
  • Service valves with sweat connections and easy-access gauge ports
  • Contactor with lug connection
  • Ground lug connection
  • AHRI Certified; ETL Listed
  • Heavy-gauge galvanized-steel cabinet with a louvered sound control top
  • Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
  • Steel louver coil guard
  • Top and side maintenance access
  • Single-panel access to controls with space provided for field-installed accessories
  • When properly anchored, meets the 2017 Florida
  • Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

SPECIFICATIONS

General Information
Operating Mode Heating and Cooling
Modulating/Staging Two Stage
Blower MotorECM Variable-Speed
Coil Width21.5 Inches
ConfigurationUpflow
DOE Regional ComplianceNationwide (Except CA)
Performance
AFUE80 %
Capacity5.0 Tons
Cooling Capacity57000 BTU
Nominal Cooling Capacity
60000 BTU
Heating BTU80000
SEER14.0
EER11.7
Maximum Air Flow1650 CFM
Dimensions
Product Weight471 Pounds
Shipping Weight485 Pounds
Certifications
AHRI CertifiedYes
ETL ListedYes
AHRI Reference Number201913964



  Goodman GSX140601 Air Conditioner Condenser
Capacities
Nominal Cooling (BTU/h)60,000
SEER / EER14/11.7
Decibels75
Compressor
RLA25.0
LRA134
Type
Scroll
Condenser Fan Motor
Horsepower1/4
FLA1.3


Goodman GMVC80805DX Gas Furnace Heater
General Information
TypeGas Furnace
Product LineGMVC80
Fuel TypeNatural Gas
Vent TypeChimney Vent
Modulating/Staging Two Stage
Blower MotorECM Variable-Speed
ConfigurationUpflow/Horizontal
Gas Conversion KitAvailable
Installation AvailableYes
UPC663051567436
Performance
AFUE 80 %
Heating BTU80000
High Fire Input80000 BTU
High Fire Output64000 BTU
Low Fire Input56000 BTU
Low Fire Output44800 BTU
Maximum Air Flow2000 CFM
Ultra Low NOx EmissionsNo
Low NOx Emissions
Yes



Goodman CAPT4961D4 Air Conditioner Evaporator Coil
General Information
TypeEvaporator Coil
Product LineCAPT
Refrigerant TypeR-410A
CasingCased
Style A Coil
ConfigurationUpflow/Downflow
Installation AvailableYes
UPC663051541085
Performance
Capacity4 - 5 Tons
Cooling BTU60000
Nominal Minimum Cooling Capacity48000 BTU
