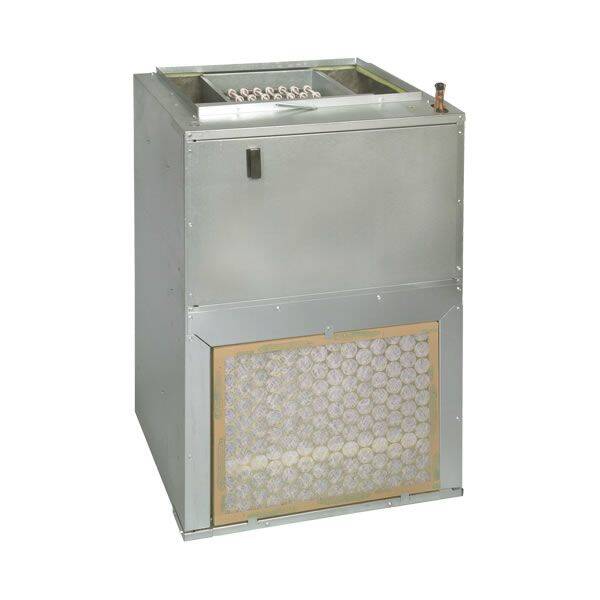

AWUF190316 Goodman 1.5 Ton Air Handler, Wall-Mount; w/PSC Motor; w/3 kW Heat
AWUF190316 Goodman 1.5 Ton Air Handler, Wall-Mount; w/PSC Motor; w/3 kW Heat
Availability:
Out-Stock
Nom. Tons: 1-1/2; Nom. kW: 3.0; Volts: 208/230; Nom. CFM: 800; CFM @ 0.5" ESP: 800; Min. Circuit Amps: 18.9; Amps @ 240V: 20.0; Max. Fuse Size: 20; Liquid Conn.: 3/8"; Suction Fitting: 5/8"; Width: 20-3/16"; Height: 36"; Depth: 16-1/8"; Wt. Lbs.: 84; Motor Type: ECM; Air Handler Type: Single Piece; Configuration: Wall Mount
$673.00 USD
SKU:
AWUF190316
ID:
HE180-2027
Categories:
PRODUCT INFO
Product Features
- For use with refrigerants R410A and R22
- Multi-speed PSC for AWUF18-24-30-36
- Check flowrater for cooling only and heat pump application
- Circuit breaker disconnect
- Thermoplastic drain pan with primary/secondary drain connections
- Sequence controlled and rust resistant heating elements
- Aluminum tubing coils
- 1.5 & 2 Ton units: front and bottom return
- 2.5 & 3 Ton units: front return only
- Built-in filter rack with filter included
- Wall hanging bracket included
- 208/240V
SPECIFICATIONS
| General Information | |
| Type | Air Handler |
| Product Line | AWUF |
| Refrigerant Type | R-410A |
| Blower Motor | Multi-Speed |
| Motor Type | ECM |
| Configuration | Wall Mounted |
| Electric Heat | Included |
| Installation Available | No |
| UPC | 663051557772 |
| Performance | |
| Capacity | 1.5 Tons |
| Cooling BTU | 18000 BTU |
| Electric Heat Capacity | 3 kW |
| Maximum Air Flow | 800 CFM |
| Minimum Air Flow | 520 CFM |
| Certifications | |
| ETL Listed | Yes |
| AHRI Certified | Yes |
| Dimensions | |
| Suction Connection Size | 5/8 Inches |
Liquid Connection Size | 3/8 Inches |
| Drain Outlet Diameter | 3/4 Inches |
| Product Height | 36 Inches |
| Product Width | 20 3/16 Inches |
| Product Depth | 16 1/8 Inches |
| Shipping Weight | 84 Pounds |
