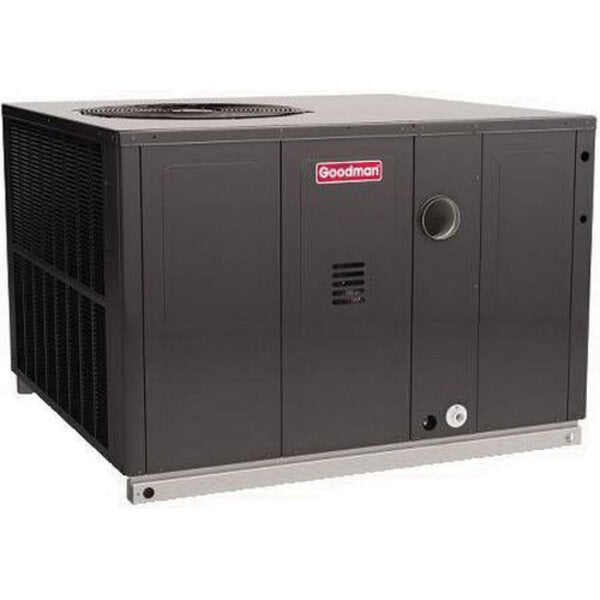

Goodman GPU1436060M41 3 Ton, 34,200 BTU; Gas/Electric Packaged Air Conditioner 14 SEER; 81% AFUE

SEER: 14; EER: 11; Nom. Tons: 3; BtuH Cooling: 34,200; BtuH Heating Input: 60,000; BtuH Heating Output: 48,000; Volts: 208/230; Phase: Single; Nom. CFM: 1,200; Min. Circuit Amps: 22.8; Refrigerant: R410A; Width: 47"; Height: 32"; Depth: 51"; Wt. Lbs.: 496;

For pricing and to purchase this product:

Please register, login, or contact us for a quote request


 Standard Features

  • Heavy-duty stainless-steel heat exchanger
  • Energy-efficient scroll compressor
  • Multi-speed ECM indoor blower motor
  • Convertible airflow: horizontal or downflow application
  • All-aluminum evaporator coil
  • Flowrater expansion device on 2- to 4-ton units; TXV expansion device on 5-ton units
  • Power-assisted combustion
  • Direct spark ignition system includes a microprocessor-based control for the entire ignition sequence, all blower operation, and all safety circuits complete with self-diagnostics
  • California Ultra-Low NOx emissions compliant
  • Eligible for installation in California’s South Coast Air Quality
  • Management District (SCAQMD) and San Joaquin Valley Air
  • Pollution Control District (SJVUAPCD). This gas packaged unit furnace complies with the 14 ng/J NOx emission limit in SCAQMD Rule 1111 and SJVUAPCD Rule 4905. This gas packaged unit furnace is eligible for the SCAQMD Clean Air
  • Furnace Rebate Program:
  • AHRI Certified; ETL Listed

Cabinet Features

  • High-quality UV-resistant powder-paint finish
  • Aluminum foil-facing internal insulation reinforced with fiberglass scrim
  • Convenient access panels
  • One roof curb fits all units
  • Fully insulated cabinet
  • Bottom, 2” high base rails for easier handling
  • Meets cabinet air leakage requirements when tested in accordance with ASHRAE standard 193
  • One footprint for all tonnages


General Information
TypeGas/Electric Packaged Unit
Product LineGPU14
Operating ModeHeating and Cooling
Fuel TypeNatural Gas
Modulating/StagingSingle Stage
Refrigerant TypeR-410A
Blower MotorMulti-Speed
Motor TypeECM
Installation LocationIndoor
Gas Conversion KitAvailable
Compressor StagesTwo
DOE Regional ComplianceNationwide
Installation AvailableYes


AFUE 81 %
Capacity 3.0 Tons
Cooling Capacity34200 BTU
Heating Capacity60000 BTU
Maximum Air Flow1200 CFM
Maximum Sound Level 78 dB


ETL ListedYes
AHRI CertifiedYes
ISO CertifiedYes
AHRI Reference Number
