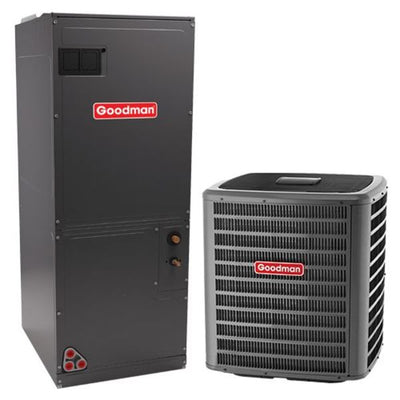

Goodman 4 Ton 16 SEER Air Conditioner Variable Speed Split System (Cooling only)

Availability:
In-Stock

Product Includes 2 items:
(1) Goodman 4 Ton 16 SEER Air Conditioner Condenser 2 Stage Communicating (GSXC160481);
(1) Goodman 4 Ton Air Conditioner Air Handler Smart Frame Cabinet (AVPTC49C14)

Title

For pricing and to purchase this product:

Please register, login, or contact us for a quote request

PRODUCT INFO

The Goodman GSXC160481 Air Conditioner Condenser

The Goodman GSXC160481 Air Conditioner Condenser offers up to 16 SEER high-efficiency performance. ”SEER” stands for Seasonal Energy Efficiency Ratio, a measure used by the U.S. Department of Energy to rate the efficiency of air conditioners. The higher the SEER, the greater the efficiency; and the lower the operating cost. In many applications, the efficiency of your Goodman brand GSXC16 Air Conditioner can be enhanced by using it in conjunction with a Goodman brand Gas Furnace that includes a variable-speed blower motor. The Goodman GSXC160481 Air Conditioner Condenser; a unit that provides you with high-efficiency, reliable performance and quiet operation.
Copeland Two-Stage Ultratech Scroll Compressor - Inside of the Goodman GSXC160481 air conditioners you will find fewer moving parts and consuming less energy compared to reciprocating compressors, the compressor uses chlorine-free R-410A refrigerant and will provide years of reliable cooling comfort.
ComfortNet Communicating System Compatible - Continuously monitors the system's operating performance and allows remote control of system as an option. The Goodman GSXC160481 air conditioners simply work the way they're supposed to, making each one a thing of beauty.
ComfortAlert Diagnostics - Advanced diagnostics constantly monitor your air conditioner system, reducing failures and pinpointing trouble spots for a fast fix.
Heavy-Gauge, Galvanized Steel Enclosure Cabinet - A louvered cabinet protects the coil, while its appliance-quality, post-paint, baked enamel finish protects your system from outdoor elements.
Factory-Installed In-Line Filter Drier - Protects the refrigerant system from dirt and moisture for longer service life compared to units without filter driers.
Quiet Operation - An acoustically engineered sound control blanket helps reduce noise levels compared to units without sound control blankets.

AVPTC49C14 Air Conditioner Air Handler

The Goodman AVPTC49C14 Air Conditioner Air Handler design includes a variable-speed direct current motor, which helps eliminate the cold blast of air upon heating start-up often associated with single-speed units. These Goodman AVPTC49C14 Air Conditioner air handler is ideal for either new or retrofit installations.
All-Aluminum Evaporator Coil - Designed for efficient heat transfer and durable performance and resists potential corrosion.
Field-Installed Heat Strips - From 3-20 kW* for emergency heating, if ever needed. (*Only select Goodman Modular blowers can use the Goodman 15-20kW Heat Strips)
Smartframe Substructure - Intelligent structural design both improves the Goodman brand air handler's lateral strength and affords a sturdy mounting framework for internal components. It also secures the foil-faced insulation covering the entire blower casing that can reduce operating noise. All of which helps to increase durability and reliability of unit.

SPECIFICATIONS

General Information
Operating ModeCooling
ConfigurationMulti-Position
Installation AvailableYes


Performance
Capacity4.0 Tons
Cooling Capacity46000 BTU
Nominal Cooling Capacity48000 BTU
SEER16.0
EER 12.5
Maximum Air Flow1420 CFM



Dimensions
Product Weight378 Pounds
Shipping Weight (total)410 Pounds



Certifications
ETL ListedYes
AHRI CertifiedYes
AHRI Reference Number10492006
Country of OriginUnited States
