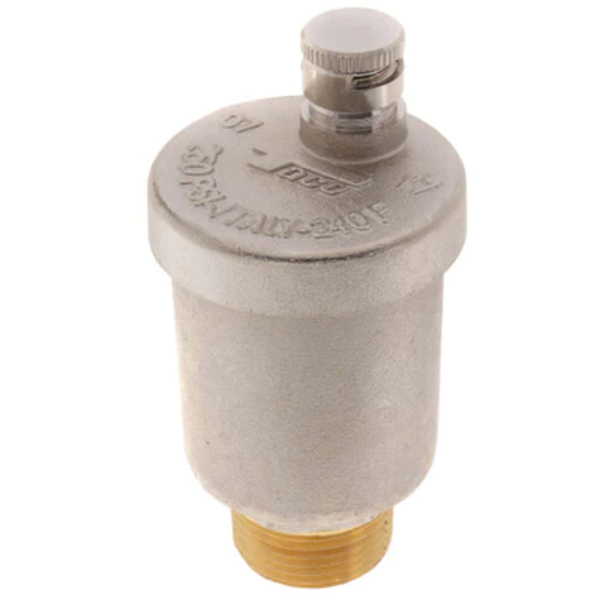

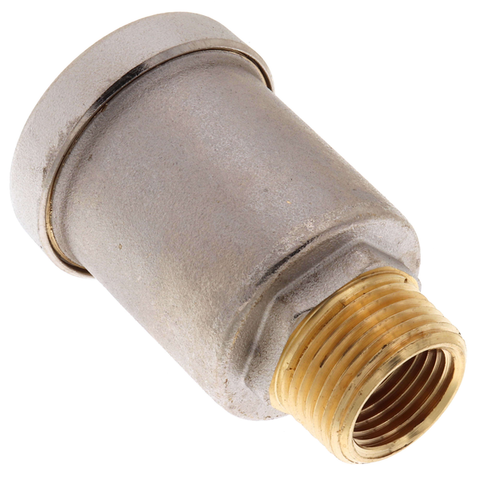

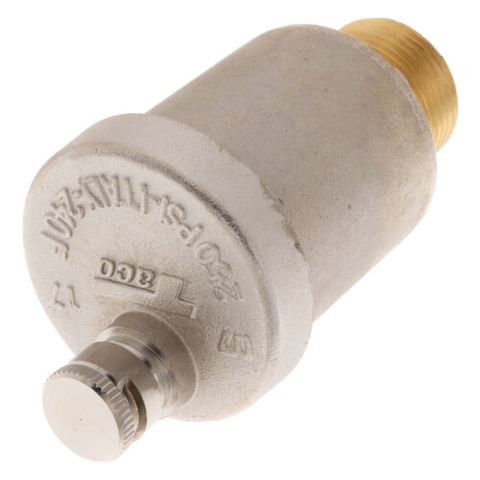

Taco 419-1 1/2" x 3/4" High Pressure Vent
- nstalled on water or stream radiators the Taco automatic coin vent is the ideal air purging device
- The coin vent features special hygroscopic cellulose discs in the valve body, when dry the discs allow air to be released from the system
- Once all the air is purged the discs would then come in contact with system water, where upon they would swell to create a positive shut-off
- This continuous cycle prevents the radiators from becoming air bound and speeds the process of filling the system
- The vent can also be manually shut-off by means of an internal ball check
$213.50 USD
SKU:
419-1
ID:
TC200-2S9-0136
Categories:
SPECIFICATIONS
| Bade Type | Brass | |
| Size | 1/2'' x 3/4'' | |
| Applicaton | Haeting | |
| Adjustability | Non-Adjustable | |
| Thread Type | Male Famale | |
| Thread Size | 1/2'' 3/4'' | |
| Max Temp (F) | 240°F | |
| Min Temp (F) | 140°F |
| Max Veanting Pressure (PSI) | 150 | |
| Max Pressure (PSI) | 250 | |
| Body Pattern | Straight | |
| Mount | Straight | |
| Type | Float-Style | |
| Temperature Range (F) | 140°F - 240°F |
