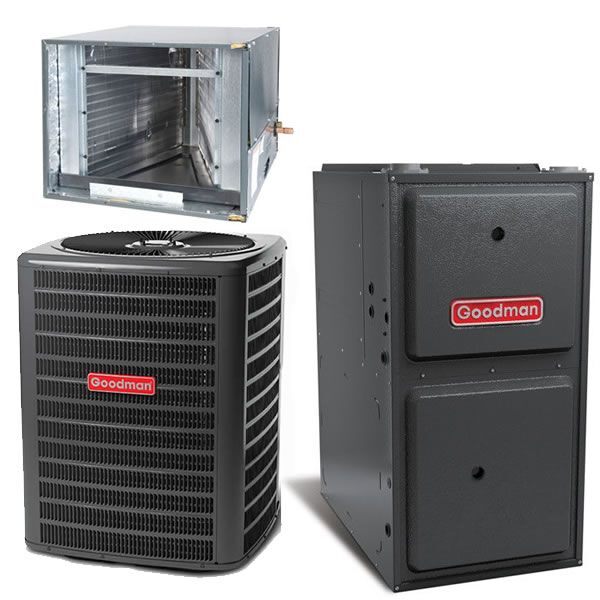

Goodman 2 Ton Cooling 14.5 SEER; 60k BTU Heating; 96% AFUE Gas Electric Air Conditioner System
Product Includes 3 items:
(1) Goodman 96% AFUE 60,000 BTU 2 Stage Upflow/Horizontal Gas Furnace Heater (GMEC960603BN);
(1) Goodman 2 Ton 14 SEER Air Conditioner Condenser w/ R410A Refrigerant (GSX140251);
(1) Goodman 3 Ton 17.5 in. Air Conditioner Horizontal Cased Coil (CHPF3636B6)
Air Conditioner TXV Kit is sold separately!
PRODUCT INFO
Overview for Goodman GMEC960603BN Gas Furnace Heater
The Goodman GMEC96 High-Efficiency Gas Furnace with two-stage gas valve and a multi-speed circulating blower provides efficient and economical performance. This gas furnace has an AFUE rating of up to 96%, which means that up to 96 cents of every $1.00 of heating energy expense warms your home.
The Goodman GMEC96 96% AFUE Two Stage, ECM Motor, Multi position Upflow/Horizontal, ComfortNet Compatible, Series GMEC960603BN Gas Furnace Heaters.
Overview for Goodman GSX140251 Air Conditioner Condenser
You can count on The Goodman GSX140251 Air Conditioner Condenser to keep you cool on even the hottest summer days. The high efficiency compressor operates in tandem with a high-efficiency coil, cooling your home effectively. And if that's not enough, Goodman goes one step farther: they install a liquid-line filter dryer in every air conditioner we build. The filter dryer prevents moisture and debris from entering the compressor motor and expansion device, thus helping to extend the life of the system. Many manufacturers leave this step out, but Goodman install filter dryers in all of our air conditioners. Please note that this product is regulated by DOE Efficiency Standards.
Overview for Goodman CHPF3636B6 Horizontal Cased Indoor Air Conditioner Evaporator Coil
The CHPF3636B6 is a cased A coil for use in horizontal airflow applications. The all-aluminum construction and advanced design of this coil improve its durability and heat transfer efficiency. Whether you're replacing a failing coil or installing a new system, you can choose the CHPF with confidence. Goodman pressure tests each coil twice before it leaves the factory and backs them with an excellent warranty.
SPECIFICATIONS
General Information | |
Operating Mode | Heating and Cooling |
Modulating/Staging | Two Stage |
Blower Motor | ECM Multi-Speed |
Coil Width | 17.5 Inches |
Configuration | Horizontal |
DOE Regional Compliance | Nationwide (Except CA) |
Performance | |
AFUE | 96 % |
Capacity | 2.0 Tons |
Cooling Capacity | 23400 BTU |
Heating BTU | 60000 |
SEER | 14.5 |
EER | 12.2 |
Maximum Air Flow | 725 CFM |
Dimensions | |
Product Weight | 301 Pounds |
Shipping Weight | 318 Pounds |
Certifications | |
AHRI Certified | Yes |
ETL Listed | Yes |
AHRI Reference Number | 8711516 |
Goodman GSX140251 Air Conditioner Condenser | |
Capacities | |
Nominal Cooling (BTU/h) | 24,000 |
SEER / EER | 14/12.2 |
Decibels | 71 |
Compressor | |
RLA | 13.5 |
LRA | 58.3 |
Condenser Fan Motor | |
Horsepower | 1/8 |
FLA | 0.7 |
Goodman GMEC960603BN Gas Furnace Heater | |
General Information | |
Type | Gas Furnace |
Product Line | GMEC96 |
Fuel Type | Natural Gas |
Vent Type | Direct Vent |
Modulating/Staging | Two Stage |
Blower Motor | ECM Multi-Speed |
Configuration | Upflow/Horizontal |
Gas Conversion Kit | Available |
Installation Available | Yes |
UPC | 663051578128 |
Performance | |
AFUE | 96 % |
Heating BTU | 60000 |
High Fire Input | 60000 BTU |
High Fire Output | 57600 BTU |
Low Fire Input | 42000 BTU |
Low Fire Output | 40320 BTU |
Maximum Air Flow | 1200 CFM |
Ultra Low NOx Emissions | No |
Low NOx Emissions | Yes |
Goodman CHPF3636B6 Air Conditioner Evaporator Coil | |
General Information | |
Type | Evaporator Coil |
Product Line | CHPF |
Refrigerant Type | R-410A |
Casing | Cased |
Style | A Coil |
Configuration | Horizontal |
Installation Available | Yes |
UPC | 663051541115 |
Performance | |
Capacity | 3 Tons |
Cooling BTU | 36000 |
Nominal Minimum Cooling Capacity | 36000 BTU |
