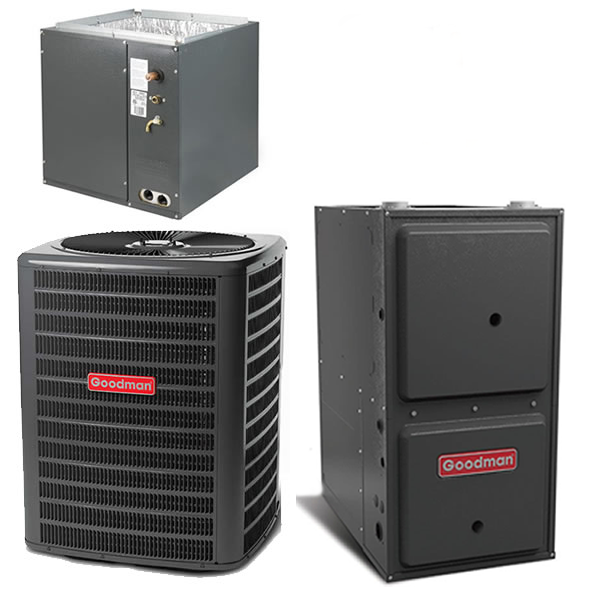

Goodman 3 Ton Cooling 14.5 SEER; 80k BTU Heating; 96% AFUE Gas Electric Air Conditioner System
Product Includes 3 items:
(1) Goodman 96% AFUE 80,000 BTU Variable Speed Downflow/Horizontal Gas Furnace (GCVC960804CN);
(1) Goodman 3 Ton 14 SEER Air Conditioner Condenser w/ R410A Refrigerant (GSX140371);
(1) Goodman 3 to 3.5 Ton 21 in. Wide Air Conditioner Evaporator Cased Coil (CAPF3743C6)
Air Conditioner TXV Kit is sold separately!
PRODUCT INFO
Goodman GCVC960804CN Gas Furnace Heater
The Goodman GCVC96 High-Efficiency Gas Furnace with two stage gas valve and a multi-speed circulating blower provides efficient and economical performance.The Goodman GCVC96 96% AFUE Two Stage, ECM Motor, Multi position Downflow/Horizontal, ComfortNet Compatible, Series GCVC960804CN Gas Furnace Heaters.
Product Features
- Low continuous fan speed
- Color-coded low-voltage terminals
- Self-diagnostic control board
- Quiet two-speed induced draft blower
- Durable Silicon Nitride igniter
- Two-stage gas valve provides quiet, economical heating
- Stainless-steel secondary heat exchanger
- Heavy-duty, aluminized-steel tubular heat exchanger
- Energy-efficient, multi-speed ECM blower motor
Goodman GSX140371 Air Conditioner Condenser
You can count on The Goodman GSX140371 Air Conditioner Condenser to keep you cool on even the hottest summer days. The high efficiency compressor operates in tandem with a high-efficiency coil, cooling your home effectively. And if that's not enough, Goodman goes one step farther: they install a liquid-line filter dryer in every air conditioner we build. The filter dryer prevents moisture and debris from entering the compressor motor and expansion device, thus helping to extend the life of the system. Many manufacturers leave this step out, but Goodman install filter dryers in all of our air conditioners. Please note that this product is regulated by DOE Efficiency Standards.
Goodman CAPF3743C6 Horizontal Cased Indoor Air Conditioner Evaporator Coil
The Goodman CAPF3743C6 Upflow/Downflow Cased Indoor Air Conditioner Evaporator Coil is made for use with split-system air conditioners or heating and Evaporator systems. The Goodman Air Conditioning and Heating Company has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market. Goodman CAPF3743C6 Horizontal Cased Indoor Air Conditioner Evaporator Coil lives up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials and spot-on manufacturing. So, no matter where you live or whether your home is small or large, Goodman probably has a solution to help keep your home comfortable.
SPECIFICATIONS
General Information | |
Operating Mode | Heating and Cooling |
Modulating/Staging | Two Stage |
Blower Motor | ECM Variable-Speed |
Coil Width | 21 Inches |
Configuration | Downflow |
DOE Regional Compliance | Nationwide (Except CA) |
Performance | |
AFUE | 96 % |
Capacity | 3.0 Tons |
Cooling Capacity | 34600 BTU |
Heating BTU | 80000 |
SEER | 14.5 |
EER | 12.2 |
Maximum Air Flow | 1190 CFM |
Dimensions | |
Product Weight | 368 Pounds |
Shipping Weight | 386 Pounds |
Certifications | |
AHRI Certified | Yes |
ETL Listed | Yes |
AHRI Reference Number | 7516948 |
Goodman GSX140371 Air Conditioner Condenser | |
Capacities | |
Nominal Cooling (BTU/h) | 36,000 |
SEER / EER | 14 /12.2 |
Decibels | 73 |
Compressor | |
RLA | 14.1 |
LRA | 72.2 |
Type | Scroll |
Condenser Fan Motor | |
Horsepower | 1/6 |
FLA | 0.95 |
Goodman GCVC960804CN Gas Furnace Heater | |
General Information | |
Type | Gas Furnace |
Product Line | GCVC96 |
Fuel Type | Natural Gas |
Vent Type | Direct Vent |
Modulating/Staging | Two Stage |
Blower Motor | ECM Variable-Speed |
Configuration | Downflow/Horizontal |
Gas Conversion Kit | Available |
Installation Available | Yes |
UPC | 663051560925 |
Performance | |
AFUE | 96 % |
Heating BTU | 80000 |
High Fire Input | 80000 BTU |
High Fire Output | 76800 |
Low Fire Input | 56000 BTU |
Low Fire Output | 53760 BTU |
Maximum Air Flow | 1600 CFM |
Ultra Low NOx Emissions | No |
Low NOx Emissions | Yes |
Goodman CAPF3743C6 Air Conditioner Evaporator Coil | |
General Information | |
Type | Evaporator Coil |
Product Line | CAPF |
Refrigerant Type | R-410A |
Casing | Cased |
Style | A Coil |
Configuration | Upflow/Downflow |
Installation Available | Yes |
UPC | 663051540972 |
Performance | |
Capacity | 3 - 3.5 Tons |
Cooling BTU | 42000 |
Nominal Minimum Cooling Capacity | 36000 BTU |
