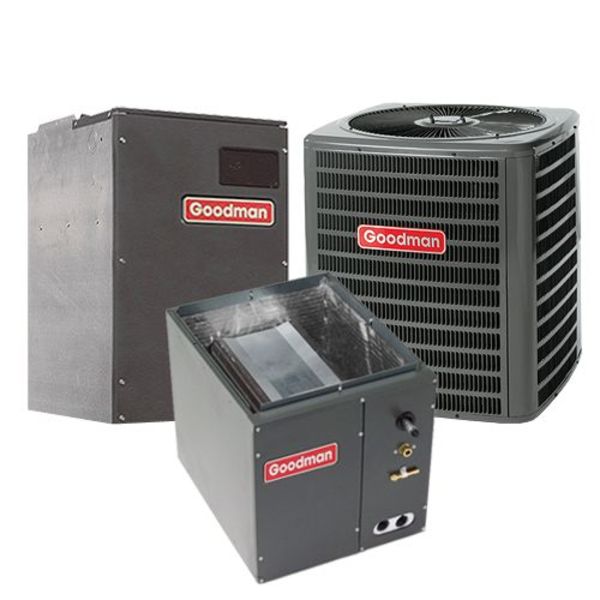

Goodman 5 Ton 14 SEER Heat Pump Split System (Heat/Cool)
Product Includes 2 items:
(1) Goodman 5 Ton 14 SEER Heat Pump Air Conditioner Condenser (GSZ140601)
(1) Goodman 5 Ton Air Conditioner Modular Blower Variable Speed (MBVC2000AA-1)
(1) Goodman 4 to 5 Ton 24.5 in. High Air Conditioner Horizontal Cased Coil (CHPF4860D6)
SKU:
GSZ140601; MBVC2000AA-1; CHPF4860D6
ID:
HE102-1006; HE125-1003; HE150-1061
PRODUCT INFO
The Goodman GSZ14 GSZ140601up to 15 SEER Heat Pump Air Conditioner Condenser is considered as the art of precision
- Quiet Condenser Fan Motor - High-efficiency, single-speed motor with special three blade fan design provides dependable, quiet airflow across condensing coil.
- Efficient Cooling Capacity - Refrigeration-grade premium copper tubing and aluminum fin condenser coil configuration deliver outstanding heat transfer properties with R-410A refrigerant.
- Quiet Operation - An acoustically engineered top on the unit helps reduce noise levels compared to units without sound control enhancements.
- Factory-Installed Bi-flow Liquid Line Filter Drier - Protects the refrigerant system from dirt and moisture for longer service life compared to units without filter driers.
- Factory-Installed Heater Band and Suction Line Accumulator - Ensures refrigerant is ready even in extreme external temperatures for smooth and energy-efficient performance.
Goodman takes pride in its company heritage when manufacturing the Goodman CHPF4860D6 Horizontal Cased Indoor Air Conditioner Evaporator Coil.
- Aluminum Tube and Aluminum Fin Coil Construction - Provides time-tested and proven heat transfer efficiency designed to resist potential corrosion.
- Grooved Aluminum Tubing - Offers increased surface area for efficient heat transfer performance by the unit's refrigerant.
- Every Unit Is Helium Pressure - Tested - During assembly to help ensure high levels of product quality. Helium is used, in part, because its molecules are smaller than oxygen. It's just one extra step taken to help ensure a high quality product.
- Every All-Aluminum Coil - Receives finished pressure testing and leak sniffing by hound-dog vacuum testing. This is a secondary test every unit receives before it leaves the factory.
Goodman MBVC2000AA-1 Variable speed, Multi position Modular blower with ComfortNet Capabilites are considered as the art of precision
- Modular Configurations with Upflow, Counterflow and Horizontal Positions - To support easy installation of unit regardless of your house type.
- Field-Installed Heat Strips - From 3-20 kW* for emergency heating, if ever needed. (*Only select Goodman Modular blowers can use the Goodman 15-20kW Heat Strips)
SPECIFICATIONS
General Information | |
Operating Mode | Heating and Cooling |
Configuration | Horizontal |
Performance | |
Capacity | 3.5 Tons |
Cooling Capacity | 60000 BTU |
Nominal Cooling Capacity | 60000 BTU |
SEER | 14.5 |
EER | 11.5 |
HSPF | 9.0 |
Maximum Air Flow | 2000 CFM |
Dimensions | |
Product Weight | 423 Pounds |
Shipping Weight | 443 Pounds |
Certifications | |
AHRI Certified | Yes |
AHRI Reference Number | 201652888 |
