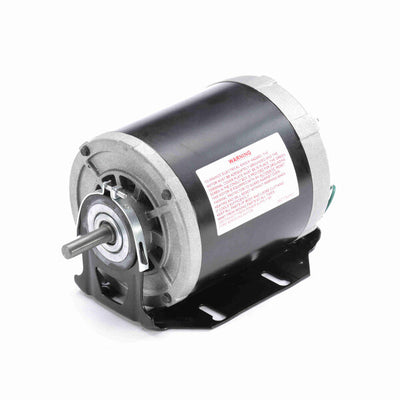

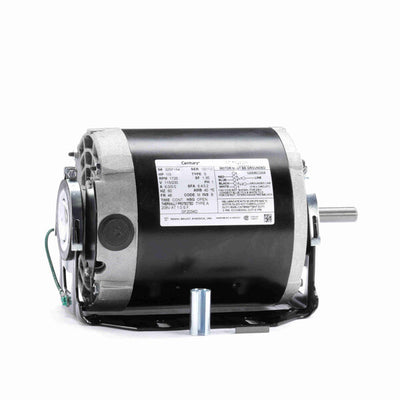

Century Belt Drive Motor, 1725 RPM, 1/3 HP, 115/230 V, 48 Frame, Open Drip Proof

Availability:
In-Stock
  • Resilient Base
  • Continuous duty
  • Single and two speed

$304.50 USD

Title
Buy Now
SKU:
GF2034D
ID:
HM109-1S9-0015

PRODUCT INFO

Applications
For Belt Driven Fan and Furnace Blowers

Features
48 frame motor mounted on 48/56 frame base and supplied with 5/8" split steel shaft bushing. Automatic reset thermal protection. Continuous duty. 60 Hz. Single-phase. 40°C ambient. Sleeve bearing. Resilient mount. Rotation easily reversed by electrical reconnection. Not recommended where automatic reset creates a hazard

SPECIFICATIONS

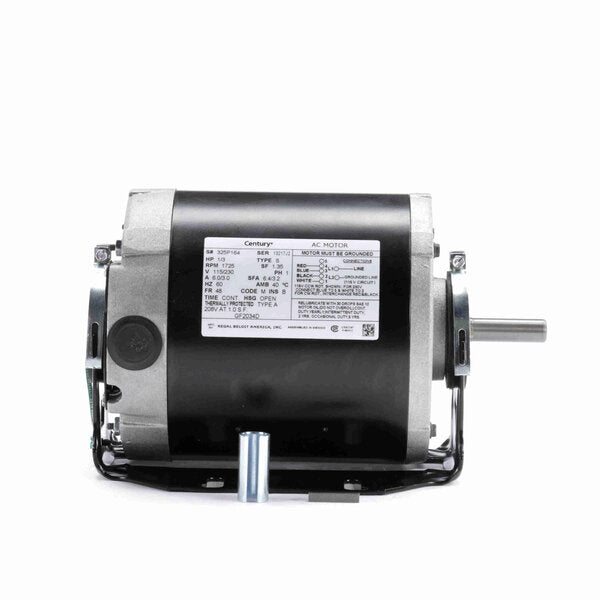

Nameplate Specifications
UPC786674021809
Output HP1/3 Hp
Frequency60 Hz
Current6.0/3.0 A
Service Factor1.35
DutyContinuous
Frame48
Thermal ProtectionAutomatic
ULNo
Voltage115/230 V
Speed1725 rpm
Phase1
Insulation ClassB
EnclosureOpen Drip Proof
Ambient Temperature40 °C
CSAY
Technical Specifications

Electrical TypeSplit Phase
Poles4
MountingResilient Base
Opp Drive End BearingSleeve
Shaft TypeKeyed
Frame Length4.94 in
Shaft Extension1.62 in
RotationReversible
Frame MaterialRolled Steel
Overall Length8.90 in
Shaft Diameter0.625 in
