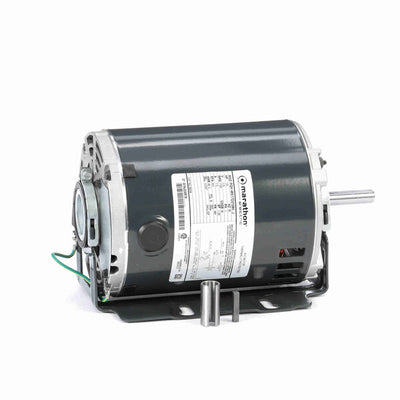

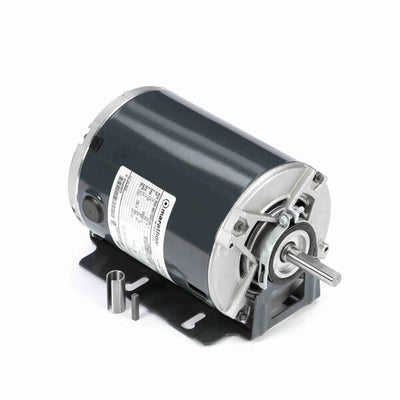

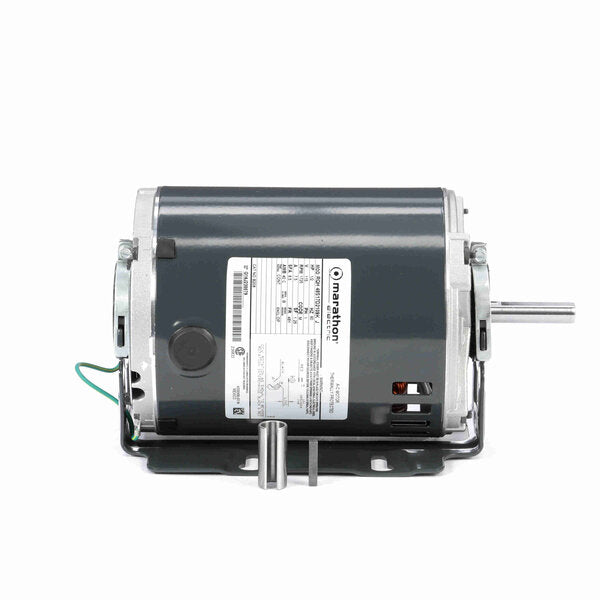

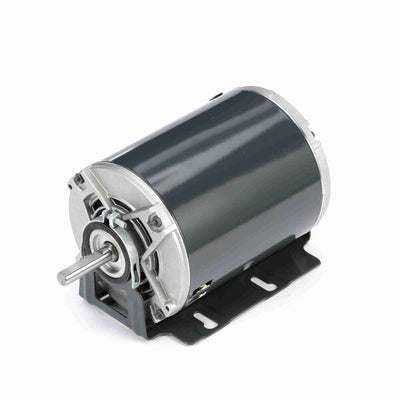

Marathon Belt Drive Motor, 1725 RPM, 1/2 HP, 115 V, 48Z Frame, Open Drip Proof

Availability:
Out-Stock
  • Ball bearings
  • Consult factory for accessory kit and/or modification selection
  • 1/2" shaft with 5/8" adapter and key
  • Heavy gauge steel frame and base
  • 48Y and 48YZ frame have 48/56 frame mounting holes

$250.00 USD

Sold Out

SKU:
B208
ID:
HM109-1S9-0011

PRODUCT INFO

Applications
Sleeve bearing motor replacements for furnace blowers, belt driven fans, air coolers and similar applications with moderate torque requirements

Features
Automatic thermal protection. Continuous duty. All-angle mounting. 40°C rise. All are 48Y frame with 48/56 frame mounting holes. Resilient base included. Furnished with 5/8" shaft adapter. Not recommended where automatic reset creates a hazard

SPECIFICATIONS

Nameplate Specifications
UPC722856039842
Output HP1/2 Hp
Frequency60 Hz
Current7.5 A
Service Factor1.25
DutyContinuous
Frame48Z
Thermal ProtectionAutomatic
ULRecognized
Voltage115 V
Speed1725 rpm
Phase1
Insulation ClassB
EnclosureOpen Drip Proof
Ambient Temperature40 °C
CSAY
Technical Specifications

Electrical TypeSplit Phase
Poles4
MountingResilient Base
Opp Drive End BearingSleeve
Shaft TypeSingle Special Extension
Shaft Extension2.01 in
RotationSelective Counterclockwise
Frame MaterialRolled Steel
Overall Length10.43 in
Shaft Diameter0.500 in
