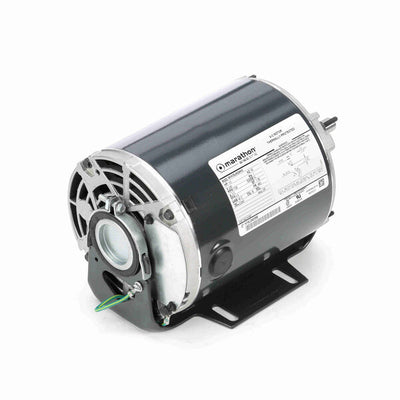

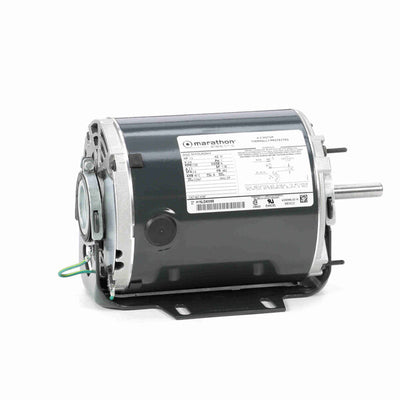

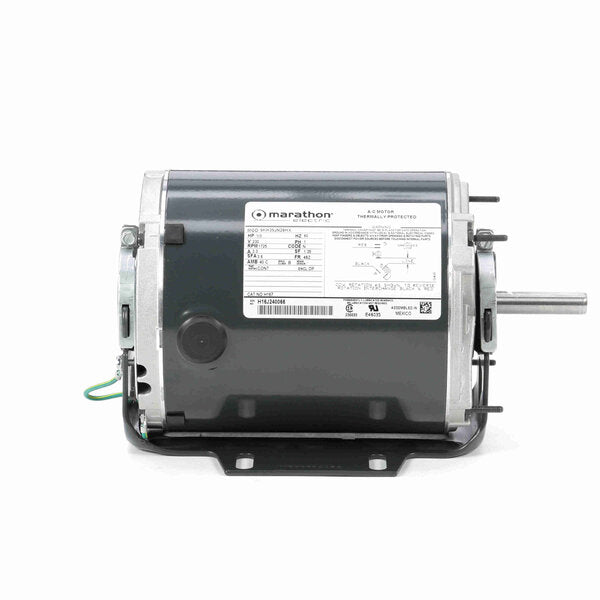

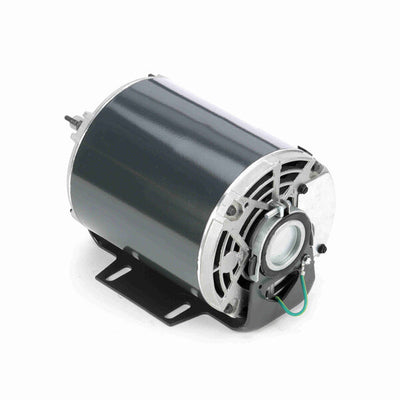

Marathon Belt Drive Motor, 1725 RPM, 1/3 HP, 230 V, 48Z Frame, Open Drip Proof
- Ball bearings
- Shaft extension 1-7/8" long by 1/2" diameter
- Heavy gauge steel frame and base
$246.00 USD
PRODUCT INFO
Features
Automatic thermal protection. Low starting amps. All-angle sleeve bearing. Resilient mounting furnished. 40°C ambient. Continuous duty. Reversible rotation. 60 Hz. Class A insulation. Not recommended where automatic reset creates a hazard
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 722856040022 |
| Output HP | 1/3 Hp |
| Frequency | 60 Hz |
| Current | 3.3 A |
| Service Factor | 1.35 |
| Duty | Continuous |
| Frame | 48Z |
| Thermal Protection | Auto |
| UL | Recognized |
| Voltage | 230 V |
| Speed | 1725 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Drip Proof |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Split Phase |
| Poles | 4 |
| Mounting | Resilient Base |
| Opp Drive End Bearing | Ball |
| Frame Length | 5.79 in |
| Shaft Extension | 1.8 in |
| Rotation | Counterclockwise/Clockwise |
| Frame Material | Rolled Steel |
| Overall Length | 9.95 in |
| Shaft Diameter | 0.500 in |
