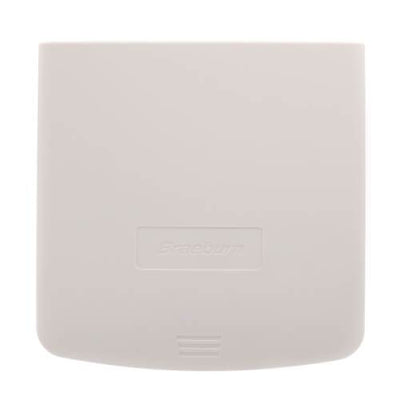

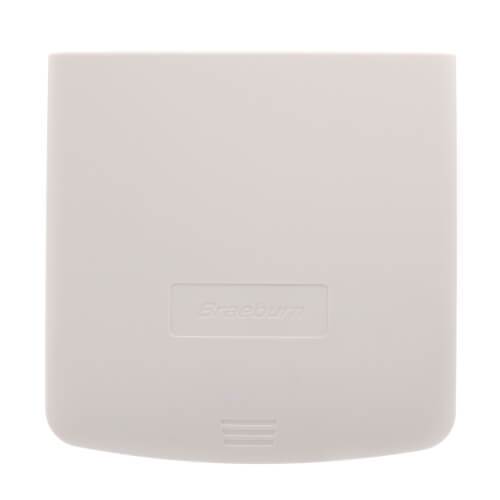

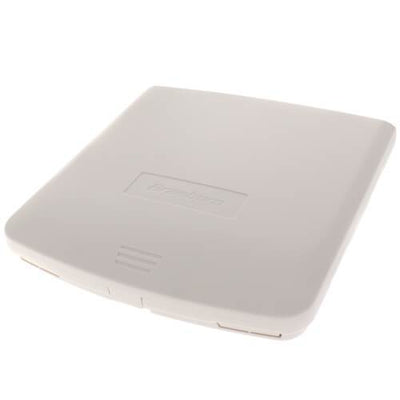

Braeburn 3-Zone Control Panel Model 140303 (3 Heat/2 Cool)
Braeburn Zone Control Panels feature the latest in zone controls. Equipment and status are determined at a glance with the monitoring LEDs built into the panel. A supply air temperature sensor is included with each panel to provide constant control. Quick and Easy Installation.
Warranty: 5 Years
$150.00 USD
SKU:
BR140303
ID:
PH501-0053
PRODUCT INFO
Braeburn zone panels are designed with the features customers demand: easy installation, at-a-glance status, quick and reliable wiring terminals - all in an attractive compact panel.
Features:
- Sleek, low profile design complements any system
- Suitable for residential and light commercial applications
- Can be used with conventional four or five wire thermostats
- LEDs indicate panel functionality
- Quick connect terminals speed installation and reliability
- Compatible with electric, gas, oil and heat pump equipment
- Controls 3 heating and 2 cooling stages
- Controls 2 or 3 zones
- Emergency heat switch with remote terminals for total heat pump control
- Fan purge into last calling zone for improved energy efficiency.
Warranty: 5 years
SPECIFICATIONS
| Panel Power: | 4 VA maximum (3.5 VA typical) for panel | |
| System Power: | 4 VA (Zone Panel) + 1.0 VA per thermostat + damper requirements, not to exceed 35 VA | |
| Protection: | Electronic self resetting, current limiting | |
| Equipment: | Relay driven 2A at 24 VAC | |
| Zone Damper Control: | Compatible with power open/power close, spring open/power close and spring close/power open dampers | |
| Indicators(28): | Power OK, status, equipment Rh, Rc, Y1, Y2, G, G2, W1/E/W3, W2/O-B; emergency heat, thermostats 3X R, Y, G, W, dampers; closed or open | |
| Switches: | Non HP/HP, dual fuel no/yes, reversing valve B active/O active, fan control plenum/system, opposite mode call timer 20/15, 2nd stage lockout none/active, priority all/zone 1, second stage for 2 zones/2 stages. | |
| Settings: | Large display for high temperature and low temperature cut-out, purge status, supply temperature | |
| Terminals: | Rh, Rc, Y1, Y2, G, G2, W1/E/W3, W2/O-B, C, E-Heat, SA1, SA2 panel power (2) and R, Y, G, W, C, PO, C, PC for each zone |
| Power: | 24 VAC | |
| Sensor: | Supply Air | |
| Indicators: | 1 LED Display, 29 LED Indicators | |

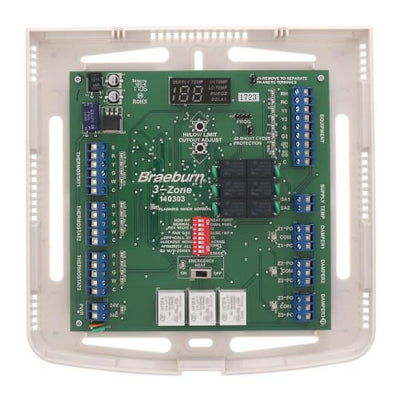

| Construction: | PC Board in High Impact Housing | |
| Mounting: | Wall or Return Air Plenum Mount | |
| Environmental: | Storage - 40˚ F to 150˚ F (-40˚ to 65˚ C) Operating - 20˚ F to 125˚ F (-30˚ to 50˚ C) |
