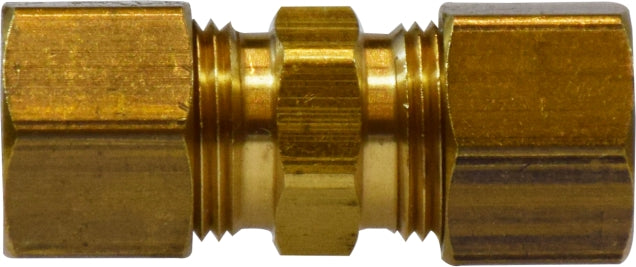

1/2" OD Brass Drilled Thru Compression Union qt

Availability:
In-Stock
Brass Drilled Thru Compression Union, P420-0068D replaces the following industrial number: 00092-08

$9.63 USD

Title
Buy Now

PRODUCT INFO

Working Pressure: at 73° F: 200 psi.

Typical Application Use with copper, aluminum and thermoplastic tubing. Not recommended for steel tubing. Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved. Not recommended for application using gaseous media.

Vibration Fair resistance - use long nut when greater vibration resistance s needed.

Temperature Range -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures. (Refer to tubing temperature range.)

Used With Aluminum, copper, brass and plastic tubing. Plastic tubing requires insert. Not recommended for steel tubing

Warning: This product can expose you to chemicals, including lead, which are known to the state of California to cause cancer and birth defects or other reproductive harm.

SPECIFICATIONS


HEX0.68

SIZE1/2” OD

APPROX WT LBS0.16

DESCRIPTION1/2 DRILL THRU COMP. UNION
