Goodman 4 Ton Cooling 14.5 SEER; 100k BTU Heating; 97% AFUE Gas Electric Air Conditioner System

Availability:
In-Stock

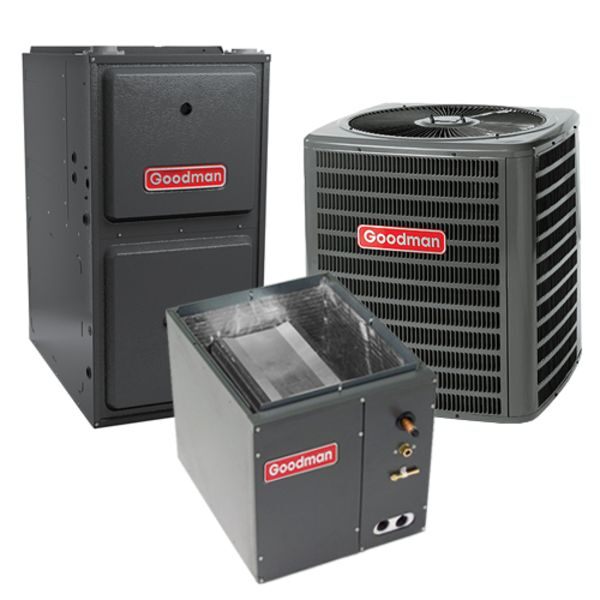

Product Includes 3 items:
(1) Goodman 97% AFUE 100,000 BTU Variable Speed Upflow/Horizontal Gas Furnace (GMVM971005CN);
(1) Goodman 4 Ton 14 SEER Air Conditioner Condenser with R410A Refrigerant (GSX140481);
(1) Goodman 4 to 5 Ton 21 in. Wide Air Conditioner Evaporator Cased Coil (CAPT4961C4)
Non-Bleed Air Conditioner TXV Kit is sold separately!

Title

For pricing and to purchase this product:

Please register, login, or contact us for a quote request

PRODUCT INFO

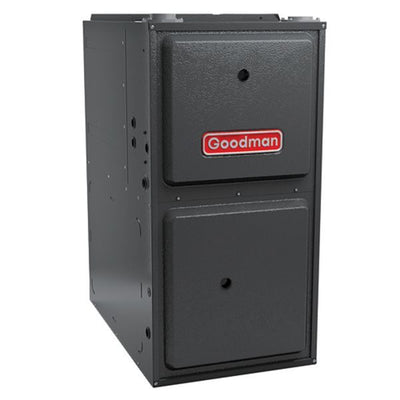

  Goodman GMVM971005CN Gas Furnace Heater
The Goodman GMVM97 High-Efficiency Gas Furnace with Modulating gas valve and a multi-speed circulating blower provides efficient and economical performance.The Goodman GMVM97 97% AFUE Modulating, ECM Motor, Multi position Upflow/Horizontal, ComfortNet Compatible, Series GMVM971005CN Gas Furnace Heaters.

Product Features

  • Low continuous fan speed
  • Color-coded low-voltage terminals
  • Self-diagnostic control board
  • Quiet two-speed induced draft blower
  • Durable Silicon Nitride igniter
  • Two-stage gas valve provides quiet, economical heating
  • Stainless-steel secondary heat exchanger
  • Heavy-duty, aluminized-steel tubular heat exchanger
  • Energy-efficient, multi-speed ECM blower motor

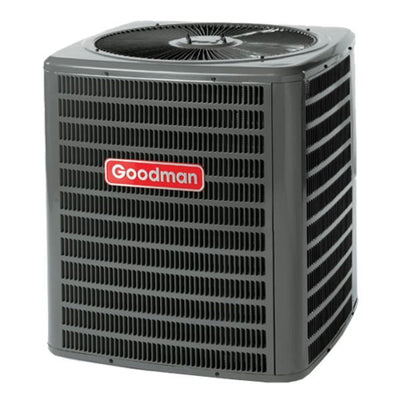

  Goodman GSX140481 Air Conditioner Condenser
You can count on The Goodman GSX140481 Air Conditioner Condenser to keep you cool on even the hottest summer days. The high efficiency compressor operates in tandem with a high-efficiency coil, cooling your home effectively. And if that's not enough, Goodman goes one step farther: they install a liquid-line filter dryer in every air conditioner we build. The filter dryer prevents moisture and debris from entering the compressor motor and expansion device, thus helping to extend the life of the system. Many manufacturers leave this step out, but Goodman install filter dryers in all of our air conditioners. Please note that this product is regulated by DOE Efficiency Standards.

  Goodman CAPT4961C4 Upflow/Downflow Cased Indoor Air Conditioner Evaporator Coil
The Goodman CAPT4961C4 Upflow/Downflow Cased Indoor Air Conditioner Evaporator Coil is made for use with split-system air conditioners or heating and Evaporator systems. The Goodman Air Conditioning and Heating Company has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market. Goodman CAPT4961C4 Upflow/Downflow Cased Indoor Air Conditioner Evaporator Coil lives up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials and spot-on manufacturing. So, no matter where you live or whether your home is small or large, Goodman probably has a solution to help keep your home comfortable.

SPECIFICATIONS

General Information
Operating Mode Heating and Cooling
Modulating/Staging
Modulating
Blower Motor
ECM Variable-Speed
Coil Width
21 Inches
ConfigurationUpflow
DOE Regional Compliance
Nationwide
Performance
AFUE97 %
Capacity4 Tons
Cooling Capacity45500 BTU
Nominal Cooling Capacity48000 BTU
Heating BTU100000
SEER14.5
EER11.7
Maximum Air Flow1450 CFM
Dimensions
Product Weight437 Pounds
Shipping Weight459 Pounds
Certifications
AHRI CertifiedYes
ETL ListedYes
AHRI Reference Number7517376



  Goodman GSX140481 Air Conditioner Condenser
Capacities
Nominal Cooling (BTU/h)48,000
SEER / EER14/11.7
Decibels74
Compressor
RLA19.9
LRA109
Condenser Fan Motor
Horsepower1/4
FLA1.3


Goodman GMVM971005CN Gas Furnace Heater
General Information
TypeGas Furnace
Product LineGMVM97
Fuel TypeNatural Gas
Vent TypeDirect Vent
Modulating/Staging Modulating
Blower MotorECM Variable-Speed
ConfigurationUpflow/Horizontal
Gas Conversion KitAvailable
Installation AvailableYes
UPC663051469518
Performance
AFUE 97 %
Heating BTU100000
High Fire Input100000 BTU
High Fire Output97000  BTU
Low Fire Input50000 BTU
Low Fire Output
48500 BTU
Maximum Air Flow2000 CFM
Ultra Low NOx EmissionsNo
Low NOx EmissionsYes



Goodman CAPT4961C4 Air Conditioner Evaporator Coil
General Information
TypeEvaporator Coil
Product LineCAPT
Refrigerant TypeR-410A
CasingCased
Style A Coil
ConfigurationUpflow/Downflow
Installation AvailableYes
UPC663051541078
Performance
Capacity4 - 5 Tons
Cooling BTU60000
Nominal Minimum Cooling Capacity48000 BTU
