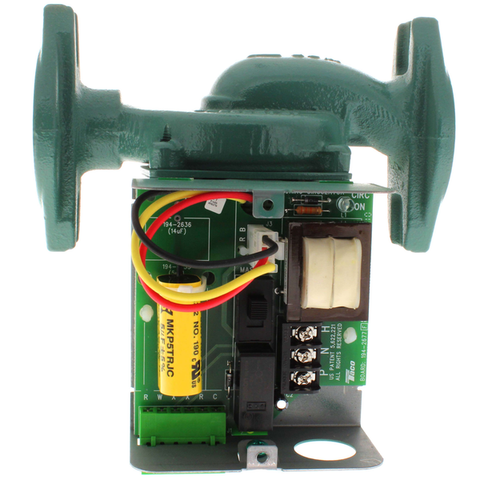

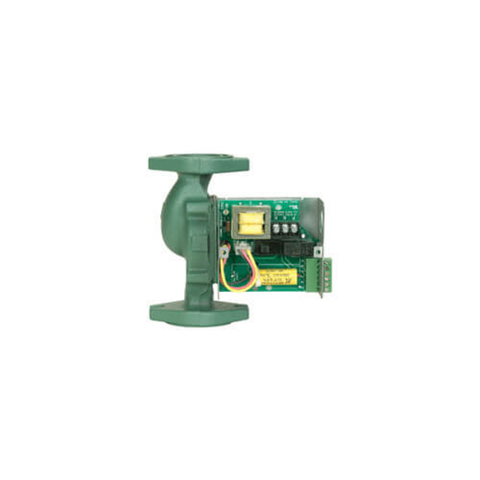

Taco 005-ZF2-6 Cast Iron Priority Zoning Circulator, 1/35 HP
Features
- Universal Thermostat Compatibility, Thermostat Ready
- Can be used in conjunction with other circulators or zone valves
- Available in a full range of sizes from 003-0014
- 00 Reliability
- Snap-In PC Board
- Low and High Voltage Strips
- Removable low-voltage terminal strip simplifies wiring installation
- LED Power Light
- UL and CSA Listed
- 100% Factory Tested
- Made in USA
Typical Applications
- Indirect Hot Water Heaters
- Adding Zones
- Zoning with Circulators
- Prioritizing Under-Sized Zones
$505.00 USD
SKU:
005-ZF2-6
ID:
TC200-2S9-0344
Categories:
SPECIFICATIONS
| Body Type | Cast Iron | |
| Voltage | 230V | |
| Max Pressure (PSI) | 125 | |
| Horse Power | 1/35 | |
| Max Head (Ft) | 9.5 | |
| Phase | 1 | |
| Connection Type | Flanged x Flanged | |
| Connection Size | 1'' 1-1/4'' 1-1/2'' 3/4'' | |
| Head Range (Ft) | 0-9.5 |
| Temperature Range | 40°F - 230°F | |
| Application | Heating | |
| Type | Pump | |
| Max Flow (GPM) | 18 | |
| Hertz | 60 | |
| RPM | 3250 | |
| Flow Ranged (GPM) | 0-18 | |
| Amperage | 0.53 | |
| Warranty | 3 Year |
