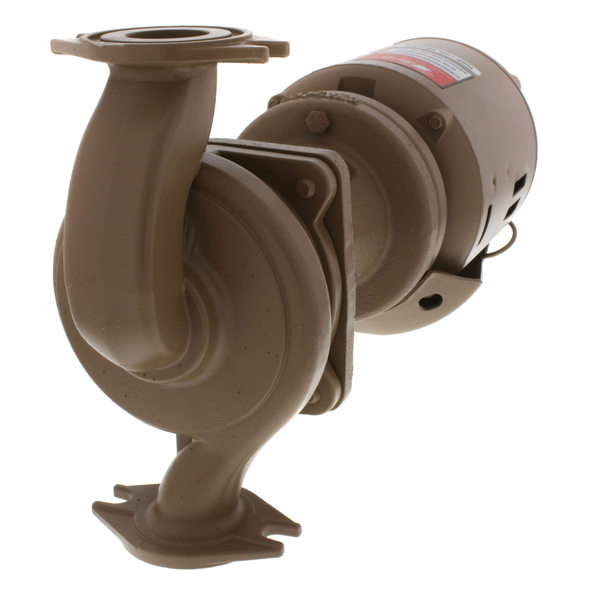

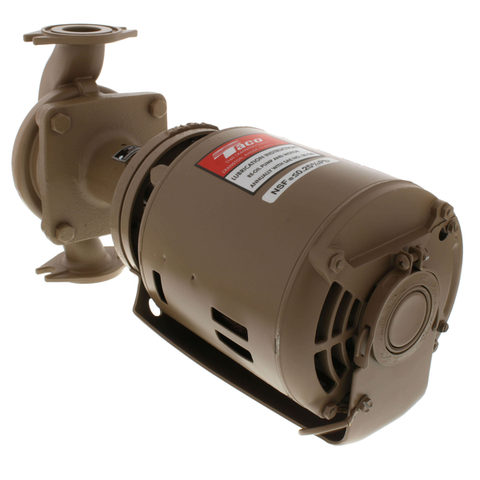

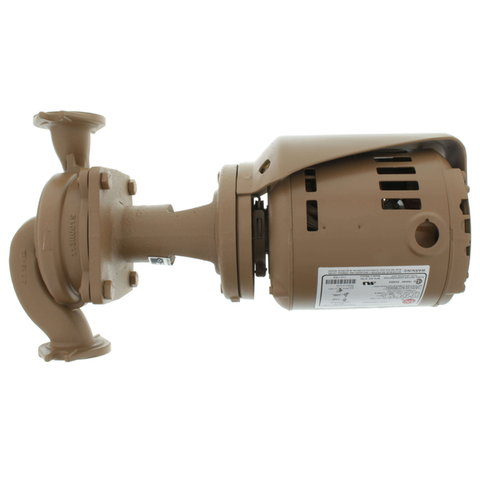

Taco 113-4S Stainless Steel Three-Piece Circulator Pump, 1/8 HP
Taco 100 Series in-line circulators are designed to efficiently circulate heated or chilled water in residential, commercial hydronic or solar systems. They are ideal for primary-secondary systems, as well as parallel pumping designs. These circulators may also be used for zoning large installations and are available in bronze construction for fresh water and domestic hot water applications.
Features:
Features:
- Rugged Motor Built to Last - Resilient mounted, split phase motor with built-in overload protector, equipped with sleeve bearings for quiet operation
- Proven Pump Construction - One piece non-ferrous impeller, stainless steel shaft, rugged bronze sleeve bearing, two piece carbon/ceramic seal assembly, durable one piece spring coupling
- Factory Tested - Every circulator is operated before shipment
- Easy, Low-Cost Service - No special tools required, nationwide parts availability
$3,050.00 USD
SKU:
113-4S
ID:
TC200-2S9-0244
Categories:
SPECIFICATIONS
| Body Type | Stainless Steel | |
| Application | Heating | |
| Voltage | 115V | |
| Max Pressure (PSI) | 125 | |
| Horse Power | 1/8 | |
| Max Head (Ft) | 17 | |
| Phase | 1 | |
| Max Temp (F) | 240°F |
| Connection Type | Flanged x Flanged | |
| Connection Size | 1'' 1-1/4'' 1-1/2'' 3/4'' | |
| Head Range (Ft) | 0-17 | |
| Flow Range (GPM) | 0-25 | |
| Type | Pump | |
| Max Flow (GPM) | 25 | |
| Hertz | 60 | |
| RPM | 1725 |
