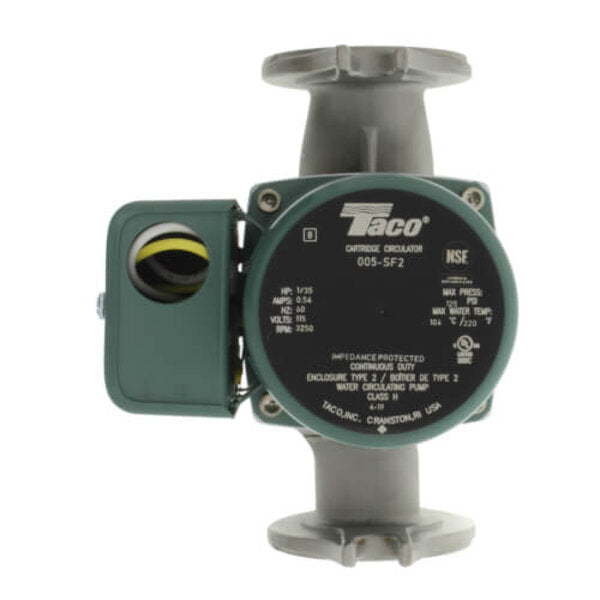

Taco 005-SF2 Stainless Steel Circulator, 1/35 HP

Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

Taco 005 Cartridge Circulator is designed for a wide range of residential and light commercial water circulating applications. Unique replaceable cartridge contains all of the moving parts so you can service it easily instead of replacing the entire unit. Compact, direct-drive design and low-power consumption are ideal for high efficiency jobs.

Performance Data

• Flow Range: 0-19.5
• GPM Head Range: 0-9.0 Feet
• Minimum Fluid Temperature: 40 degrees F (4 degrees C)
• Maximum Fluid Temperature, Cast Iron: 230 degrees F (110 degrees C)
• Maximum Fluid Temperature, Stainless Steel: 220 degrees F (104 degrees C)
• Maximum Working Pressure: 125 PSI
• Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged

Features:

• Standard High Capacity Output Compact Design
• Quiet, Efficient Operation
• Unique Replaceable Cartridge Design-Field Serviceable
• Direct Drive-Low Power Consumption
• Self-Lubricating
• No Mechanical Seal
• Unmatched Reliability --Maintenance Free
• Universal Flange-to-Flange Dimensions
• Cast Iron or Stainless Steel Construction

Typical Applications
Hydronic Heating
Add-A-Zone Additions
Zoning with Circulators
Chilled Water Cooling
Domestic Water Systems

Replacement Parts List:
Casing O-Ring: 008-005RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 007-002RP
Cartridge Assembly Complete: 005-020RP
