Taco I100C2S-2 Plumb N' Plug Stainless Steel Circulator, 1/40 HP (w/ Digital Timer & Line Cord)

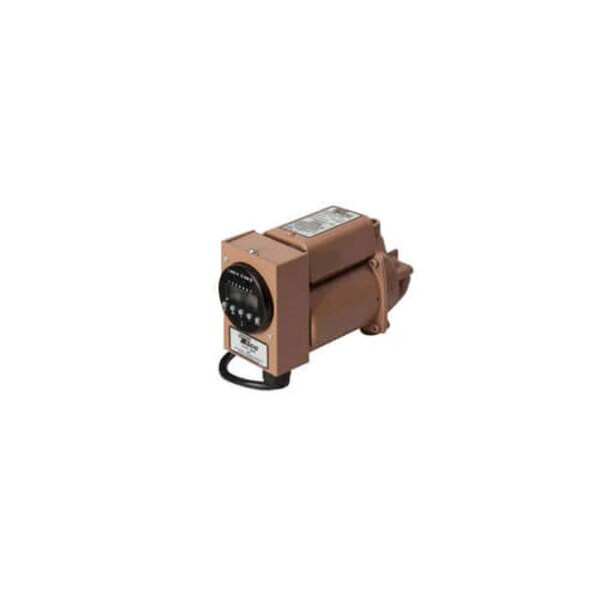

NOTE: Image representative of bronze model of product

Overview

The 003 and 006 Plumb n' Plug® Cartridge Circulators are designed to conserve water, increase comfort and reduce the delivery time of hot water to outlet fixtures by periodically re-circulating hot water through the system. An average residence can save up to 25 gallons of wasted water per day. Factory pre-wired 6 foot line cord with optional 24 hour analog or 7 day digital programmable clock timers allow for easy installation. Simply Plumb it in, then Plug it in. Plumb n' Plug® circulators include all the standard 00® maintenance-free design features-no mechanical seal, self lubricating, replaceable cartridge, quiet, efficient operation and unmatched reliability

The Taco 006 PNP is designed for systems using 200-400 feet of 3/4" pipe. Installation of isolation valves, pipe insulation and flow checks are recommended.

Features

• Factory Installed 6' Line Cord and 24 Hour/15 Minute Interval Digital Timer
• UL Listed
• Quiet, Efficient Operation
• Direct Drive-Low Power Consumption
• Unique Replaceable Cartridge Design-Field Serviceable
• Self Lubricating
• No Mechanical Seal
• Unmatched Reliability-Maintenance Free

Replacement Parts List:
Casing O-Ring: 007-003RP
Capacitor or PC Board: 007-002RP
Cartridge Assembly Complete: 005-020RP
