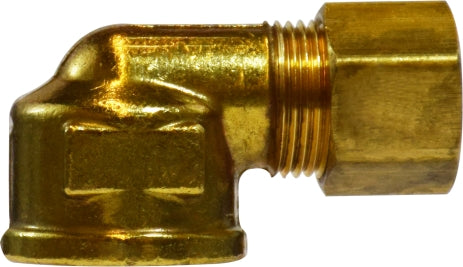

3/16" OD X 1/8" Brass Female Elbow
Brass Female Elbow, P420-0252 replaces the following industrial numbers: 00070-0302; 170320; 2703; 270x3; 50915K162; 70-32; 70-3A; 703A; 70A-3A; 70F-32 / 270X3; 70x3; S70-3-2
$6.08 USD
SKU:
P420-0252
ID:
P420-0252
PRODUCT INFO
Working pressures at 73°F: 400 psi
Typical Application Use with copper, aluminum and thermoplastic tubing. Not recommended for steel tubing. Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved. Not recommended for application using gaseous media.
Vibration Fair resistance - use long nut when greater vibration resistance s needed.
Temperature Range -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures. (Refer to tubing temperature range.)
Used With Aluminum, copper, brass and plastic tubing. Plastic tubing requires insert. Not recommended for steel tubing
Warning: This product can expose you to chemicals, including lead, which are known to the state of California to cause cancer and birth defects or other reproductive harm.
SPECIFICATIONS
| COMP X FEMALE NPTF | 3/16” OD x 1/8” | |
| APPROX WT LBS | 0.04 | |
| LENGTH | 0.69 | |
| DIAMETER | 0.47 | |
| DESCRIPTION | 3/16 OD X 1/8 COMP X FIP ELBOW | |
| BODY SIZE | 0.56 |
