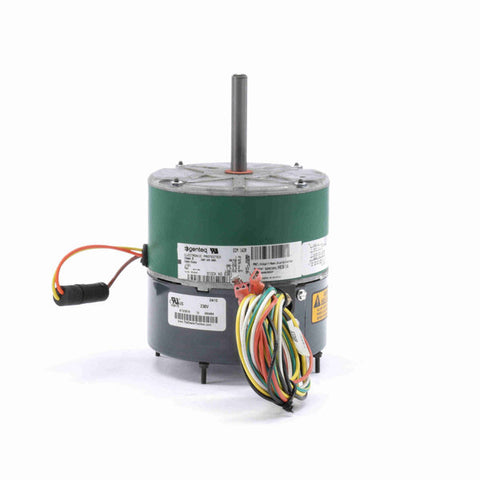

Genteq Condenser Fan ECM Motor, 850/1100 RPM, 1/5 HP, 208-230 V, 48 Frame, Totally Enclosed Air Over

Availability:
In-Stock
  • Evergreen OM - Retrofit Condenser Fan Motor
  • 5.6" Diameter - 48 Frame
  • Electronically Commutated (ECM)
  • Electronically Protected
  • Totally Enclosed Air Over
  • Class B Insulation, 60°C Ambient
  • Ball Bearing
  • 1/2" Diameter Shaft with Flat
  • 55" Leads
  • Extended Clampbolts, Belly Band

$284.00 USD

Title
Buy Now
SKU:
6301
ID:
HM104-1S9-0002

SPECIFICATIONS

Nameplate Specifications
UPC815585020592
Output HP1/5 Hp
Frequency60 Hz
Current2.8 A
Service Factor1
DutyContinuous Air Over
Frame48
Thermal ProtectionNo
ULRecognized
Voltage208-230 V
Speed850/1100 rpm
Phase1
Insulation ClassB
EnclosureTotally Enclosed Air Over
Ambient Temperature60 °C
CSAN
Technical Specifications

Electrical TypeElectronically Commutated Motor
Poles12
MountingExtended Studs
Opp Drive End BearingBall
Shaft TypeFlat
Frame Length2.57 in
Shaft Extension3.00 in
RotationReversible
Frame MaterialRolled Steel
Overall Length8.49 in
Shaft Diameter0.500 in
