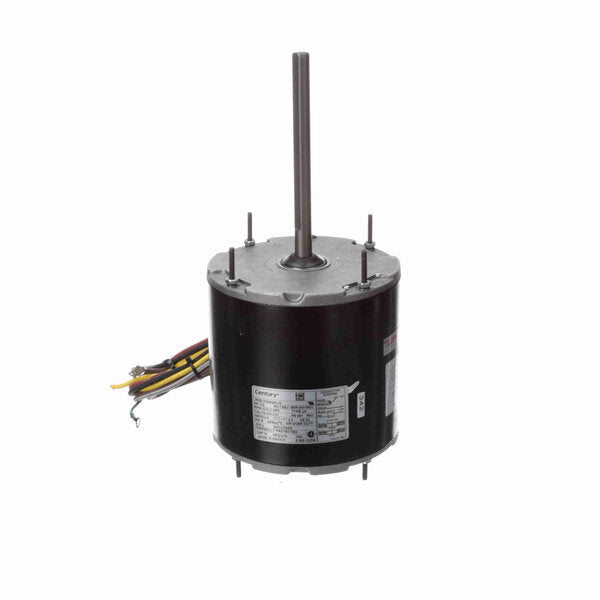

Century Condenser Fan Motor, 1075 RPM, 1/2 HP, 208-230 V, 48 Frame, Totally Enclosed Air Over
- Condenser Fan - Heat Pump - Refrigeration Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
- Sleeve Bearing
- 1/2" Diameter Shaft with Double Flat
- 27" Leads
- Extended Studs Shaft End and Lead End
- HM101-0082 replaces the following brands and item numbers: motors in units by Carrier/Bryant and others
$375.90 USD
PRODUCT INFO
Applications
Replaces motors in units by Carrier/Bryant and others
Features
Automatic thermal protection. 60°C ambient. Short body design. Shaft up or down mounting with extended thru-bolts both ends. Class B insulation. Electrically reversible
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674021526 |
| Output HP | 1/2 Hp |
| Frequency | 60 Hz |
| Current | 2.8 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 48Y |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 208-230 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Totally Enclosed |
| Ambient Temperature | 60 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Double Flat |
| Frame Length | 4.75 in |
| Shaft Extension | 6 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length | 11.92 in |
| Shaft Diameter | 0.500 in |
