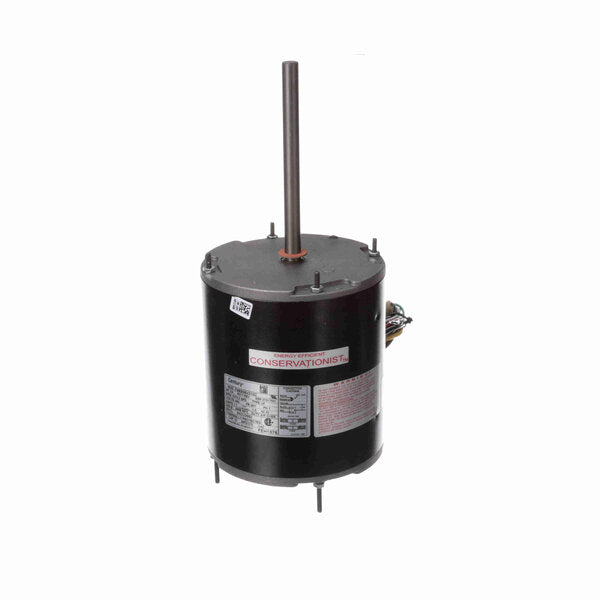

Century Condenser Fan Motor, 1075 RPM, 1/2 HP, 460 V, 48 Frame, Totally Enclosed Air Over

Availability:
In-Stock
  • HeatMaster Ultra - Condenser Fan Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Totally Enclosed Air Over
  • Class F Insulation, 80°C Ambient
  • Ball Bearing
  • 1/2" Diameter Shaft with Double Flat
  • 48" Leads
  • Extended Studs Shaft End and Lead End, Mounting Holes in Shell, Belly Band, 4.33BC Lead End End-Frame

$373.80 USD

Title
Buy Now
SKU:
FEH1056SU
ID:
HM101-1S9-0068

PRODUCT INFO

Applications
For use with head pressure/speed controls

Features
Automatic thermal protection. Three-Year Warranty. UL and CSA approved Class F Insulation achieves superior dielectric strength for long thermal life. Double sealed ball bearing with high temperature synthetic grease. Water-resistant reversing plug. 48" color coded high temperature leads for easy identification and installation. Mounts by belly band, adjustable extended thru-bolts, or Rheem/Trane mounting holes, with screws supplied

SPECIFICATIONS

Nameplate Specifications
UPC786674068798
Output HP1/2 Hp
Frequency60 Hz
Current1.5 A
Service Factor1
DutyAir Over
Frame48
Thermal ProtectionAutomatic
ULRecognized
Voltage460 V
Speed1075 rpm
Phase1
Insulation ClassF
EnclosureTotally Enclosed
Ambient Temperature80 °C
CSAY


Technical Specifications

Electrical TypePermanent Split Capacitor
Poles6
MountingExtended Studs
Opp Drive End BearingBall
Shaft TypeDouble Flat
Frame Length5.00 in
Shaft Extension6.5 in
RotationReversible
Frame MaterialRolled Steel
Overall Length12.99 in
Shaft Diameter0.500 in
