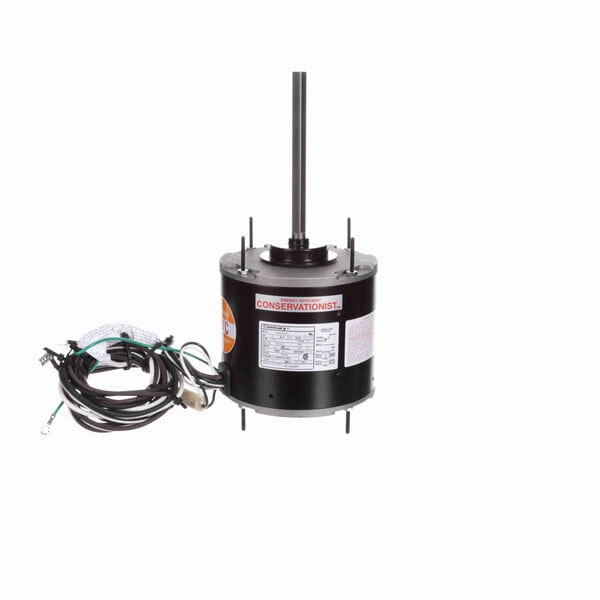

Century Condenser Fan Motor, 1075 RPM, 1/3 HP, 208-230 V, 48 Frame, Totally Enclosed Air Over
- HeatMaster - Condenser Fan - Heat Pump - Refrigeration Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class F Insulation, 70°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Double Flat
- 48" Leads
- Extended Studs Shaft and Lead End, Mounting Holes in Shell, Belly Band
$198.45 USD
PRODUCT INFO
Applications
Replaces motors in units by Carrier/Bryant and others
Features
70°C ambient. Three year warranty. UL and CSA approved Class F insulation achieves superior dielectric strength for long thermal life. Single-speed. Sleeve or ball bearing. Large high-temperature nylon glass-filled shaft slinger for bearing protection; keeps water and dirt out of motor bearings. 36” color coded high temperature leads for easy identification and installation. Easy to remove drain plugs in both end frames allow accumulated condensation to be expelled quickly
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674020802 |
| Output HP | 1/3 Hp |
| Frequency | 60 Hz |
| Current | 2.8 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 48 |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 208-230 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | F |
| Enclosure | Totally Enclosed |
| Ambient Temperature | 70 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Ball |
| Shaft Type | Double Flat |
| Frame Length | 4.25 in |
| Shaft Extension | 6.5 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length | 12.24 in |
| Shaft Diameter | 0.500 in |
