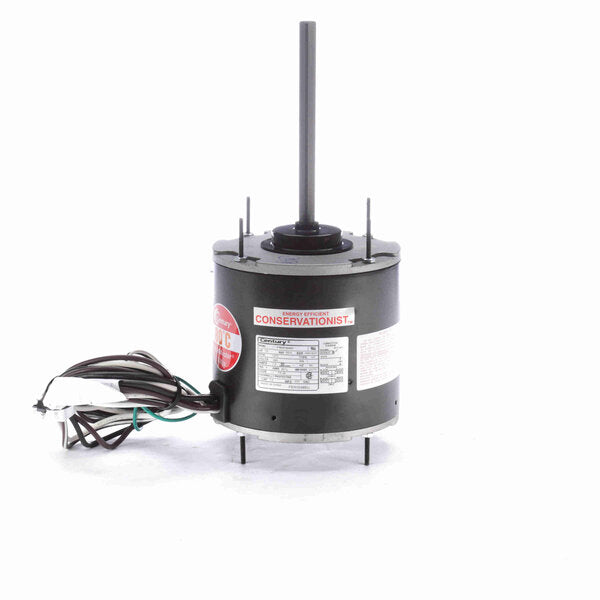

Century Condenser Fan Motor, 1075 RPM, 1/3 HP, 460 V, 48 Frame, Totally Enclosed Air Over
- HeatMaster Ultra - Condenser Fan Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
- Ball Bearing
- 1/2" Diameter Shaft with Double Flat
- 48" Leads
- Extended Studs Shaft End and Lead End, Mounting Holes in Shell, Belly Band, 4.33BC Lead End End-Frame
- HM101-0066 replaces the following brands and item numbers: motors in units by Carrier/Bryant and others
$346.50 USD
PRODUCT INFO
Applications
For use with head pressure/speed controls
Features
Automatic thermal protection. Three-Year Warranty. UL and CSA approved Class F Insulation achieves superior dielectric strength for long thermal life. Double sealed ball bearing with high temperature synthetic grease. Water-resistant reversing plug. 48" color coded high temperature leads for easy identification and installation. Mounts by belly band, adjustable extended thru-bolts, or Rheem/Trane mounting holes, with screws supplied
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674068866 |
| Output HP | 1/3 Hp |
| Frequency | 60 Hz |
| Current | 1.2 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 48 |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 460 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | F |
| Enclosure | Totally Enclosed |
| Ambient Temperature | 80 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Ball |
| Shaft Type | Double Flat |
| Frame Length | 4.62 in |
| Shaft Extension | 6.5 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length | 12.62 in |
| Shaft Diameter | 0.500 in |
