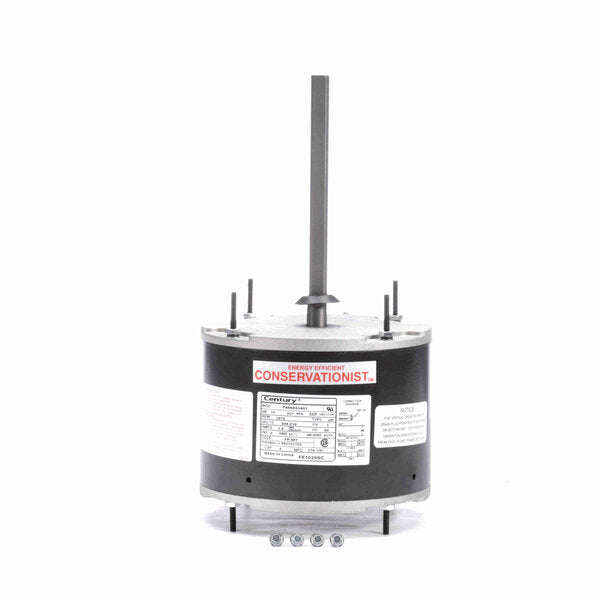

Century Condenser Fan Motor, 1075 RPM, 1/4 HP, 208-230 V, 48 Frame, Totally Enclosed Air Over

Availability:
In-Stock
  • Condenser Fan - Heat Pump - Refrigeration Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
  • Ball Bearing
  • 1/2" Diameter Shaft with Double Flat
  • 27" Leads
  • Extended Studs Shaft End and Lead End, Belly Band, Mounting Holes in Shell
  • HM101-0045 replaces the following brands and item numbers: motors in units by Carrier/Bryant and others

$148.05 USD

Title
Buy Now
SKU:
FE1026SC
ID:
HM101-1S9-0045

PRODUCT INFO

Applications
Replaces motors in units by Carrier/Bryant and others

Features
Automatic thermal protection. 60°C ambient. Short body design. Shaft up or down mounting with extended thru-bolts both ends. Class B insulation. Electrically reversible

SPECIFICATIONS

Nameplate Specifications
UPC786674005649
Output HP1/4 Hp
Frequency60 Hz
Current1.75 A
Service Factor1
DutyAir Over
Frame48Y
Thermal ProtectionAutomatic
ULRecognized
Voltage208-230 V
Speed1075 rpm
Phase1
Insulation ClassB
EnclosureTotally Enclosed
Ambient Temperature60 °C
CSAY


Technical Specifications

Electrical TypePermanent Split Capacitor
Poles6
MountingExtended Studs
Opp Drive End BearingBall
Shaft TypeFlat
Frame Length3.50 in
Shaft Extension6.0 in
RotationReversible
Frame MaterialRolled Steel
Overall Length10.67 in
Shaft Diameter0.500 in
