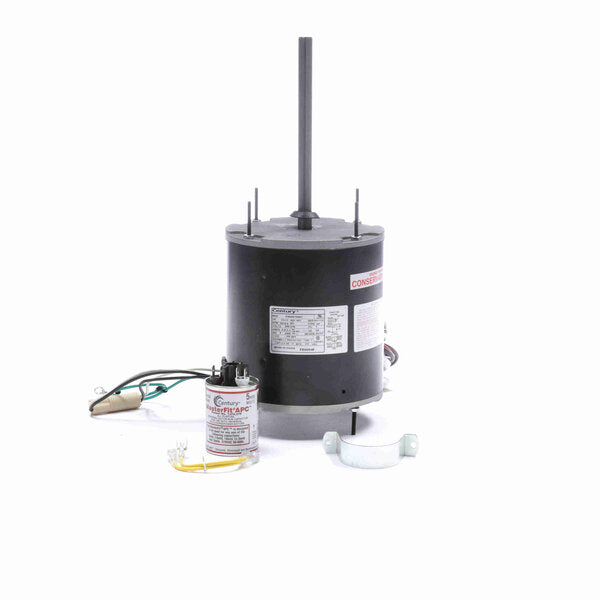

Century Condenser Fan Motor, 1075 RPM, 3/4-1/3 HP, 208-230 V, 48 Frame, Totally Enclosed Air Over

Availability:
In-Stock
  • MasterFit Pro - Condenser Fan Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 15or 12.5 Mfd-370 Volts (Supplied with Motor)
  • Thermally Protected
  • Totally Enclosed Air Over
  • Class F Insulation, 70°C Ambient
  • Ball Bearing
  • 1/2" Diameter Shaft with Double Flat
  • 48" Leads with Quick Connect Terminals
  • Extended Studs Shaft End, Mounting Holes in Shell, Belly Band, 4.33BC Lead End End-Frame

$269.85 USD

Title
Buy Now
SKU:
FE6004F
ID:
HM101-1S9-0063

PRODUCT INFO

Features
All purpose capacitor included. Mounts by belly band, thru-bolts or shell holes. Extended thru bolts. Rheem mounting holes in shell. 2 speed



SPECIFICATIONS

Nameplate Specifications
UPC786674054739
Output HP3/4,1/3 Hp
Frequency60 Hz
Current5.6,2.4 A
Service Factor1
DutyAir Over
Frame48
Thermal ProtectionAutomatic
ULRecognized
Voltage208-230 V
Speed1075 rpm
Phase1
Insulation ClassF
EnclosureTotally Enclosed
Ambient Temperature70 °C
CSAY


Technical Specifications

Electrical TypePermanent Split Capacitor
Poles6
MountingExtended Studs
Opp Drive End BearingBall
Shaft TypeDouble Flat
Frame Length5.37 in
Shaft Extension6.5 in
RotationReversible
Frame MaterialRolled Steel
Overall Length13.37 in
Shaft Diameter0.500 in
