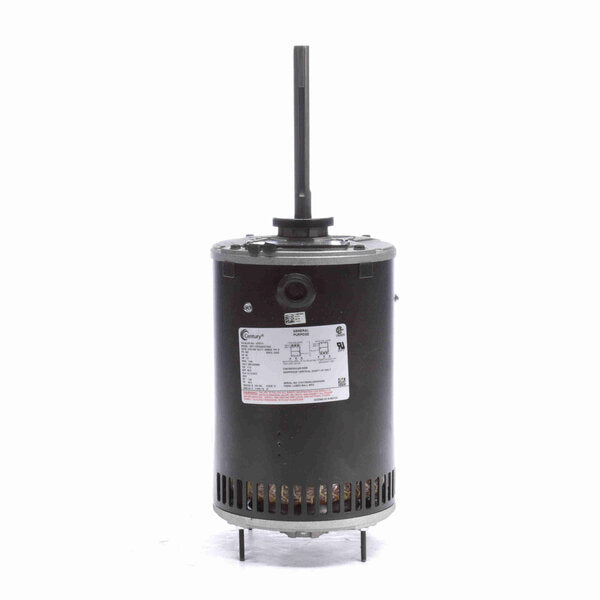

Century Condenser Fan Motor, 1140 RPM, 1-1/2 HP, 200-230/460 V, 56Y Frame, Open Air Over
- Double sealed ball bearings
- Automatic reset thermal protector
- Quick-connect design
- Reversible
- 3 Phase
$716.10 USD
PRODUCT INFO
Features
Automatic reset overload protection. Vertical or horizontal mounting. Double sealed ball bearings. Shaft with both keyway and flat. 60°C ambient. 1.0 service factor
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674074140 |
| Output HP | 1-1/2 Hp |
| Frequency | 60 Hz |
| Current | 5.1-5.0/2.5 A |
| Service Factor | 1 |
| Duty | Continuous |
| Frame | 56Y |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Voltage | 200-230/460 V |
| Speed | 1140 rpm |
| Phase | 3 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 60 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Three Phase |
| Poles | 6 |
| Mounting | Round |
| Opp Drive End Bearing | Ball |
| Shaft Type | Keyed |
| Frame Length | 8.65 in |
| Shaft Extension | 6.19 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length | 17.02 in |
| Shaft Diameter | 0.625 in |
