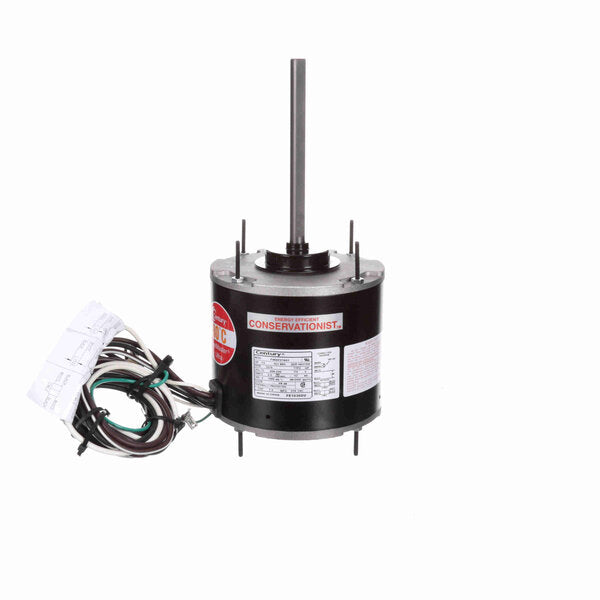

Century Condenser Fan Motor, 1075 RPM, 1/3 HP, 208-230 V, 48 Frame, Totally Enclosed Air Over

Availability:
In-Stock
  • HeatMaster Ultra - Condenser Fan Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Totally Enclosed Air Over
  • Class F Insulation, 80°C Ambient
  • Ball Bearing
  • 1/2" Diameter Shaft with Double Flat
  • 48" Leads
  • Extended Studs Shaft End, Mounting Holes in Shell, Belly Band, 4.33BC Lead End End-Frame

$214.20 USD

Title
Buy Now
SKU:
FE1036SU
ID:
HM101-1S9-0052

PRODUCT INFO

Applications
For use with head pressure/speed controls

Features
Automatic thermal protection. Three-Year Warranty. UL and CSA approved Class F Insulation achieves superior dielectric strength for long thermal life. Double sealed ball bearing with high temperature synthetic grease. Water-resistant reversing plug. 48" color coded high temperature leads for easy identification and installation. Mounts by belly band, adjustable extended thru-bolts, or Rheem/Trane mounting holes, with screws supplied


SPECIFICATIONS

Nameplate Specifications
UPC786674068835
Output HP1/3 Hp
Frequency60 Hz
Current2.5 A
Service Factor1
DutyAir Over
Frame48
Thermal ProtectionAutomatic
ULRecognized
Voltage208-230 V
Speed1075 rpm
Phase1
Insulation ClassF
EnclosureTotally Enclosed
Ambient Temperature80 °C
CSAY


Technical Specifications

Electrical TypePermanent Split Capacitor
Poles6
MountingExtended Studs
Opp Drive End BearingBall
Shaft TypeDouble Flat
Frame Length4.25 in
Shaft Extension6.5 in
RotationReversible
Frame MaterialRolled Steel
Overall Length12.24 in
Shaft Diameter0.500 in
