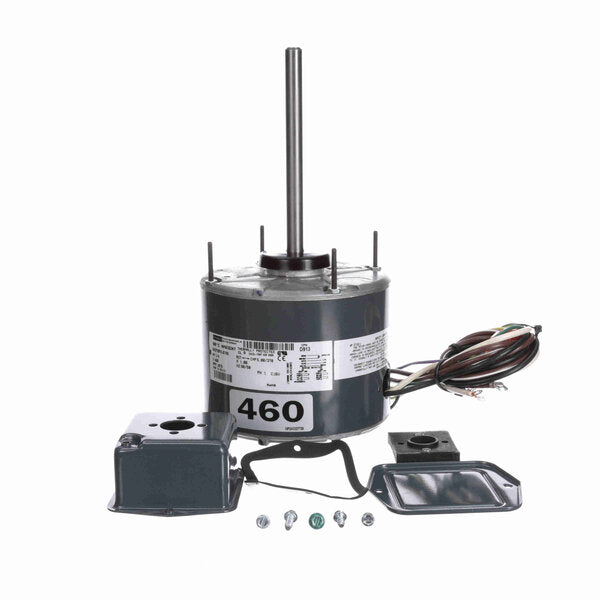

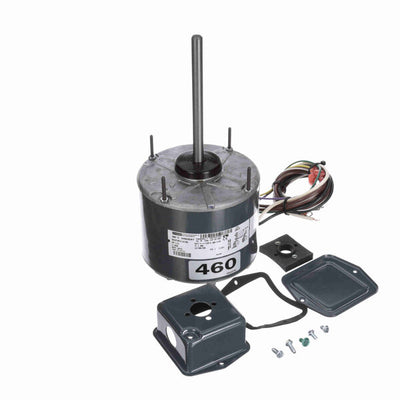

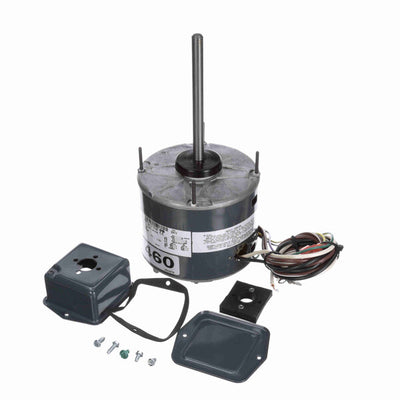

Fasco Condenser Fan Motor, 1075 RPM, 1/4 HP, 460 V, 48 Frame, Open Air Over
- Condenser Fan motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor
- Thermally Protected
- Open Lead End, Shell Half Vented Lead End, Enclosed Shaft End End-Frame, Air Over
- Class B Insulation, 60°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Double Flat
- 27" Leads
- Extended Studs Shaft End, Belly Band
$368.00 USD
PRODUCT INFO
Applications
Primarily used in commercial rooftop air conditioning units
Features
Automatic thermal protection. Class B insulation systems. Lead end bell open all models, shaft end bell closed except as noted. Rotation: electrically reversible
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 818508020556 |
| Output HP | 1/4 Hp |
| Frequency | 60 Hz |
| Current | 1.00 A |
| Service Factor | 1 |
| Duty | Continuous Air Over |
| Frame | 48 |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Voltage | 460 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 60 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Ball |
| Shaft Type | Double Flat |
| Frame Length | 3.82 in |
| Shaft Extension | 5.90 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length: | 11.34 in |
| Shaft Diameter | 0.500 in |
