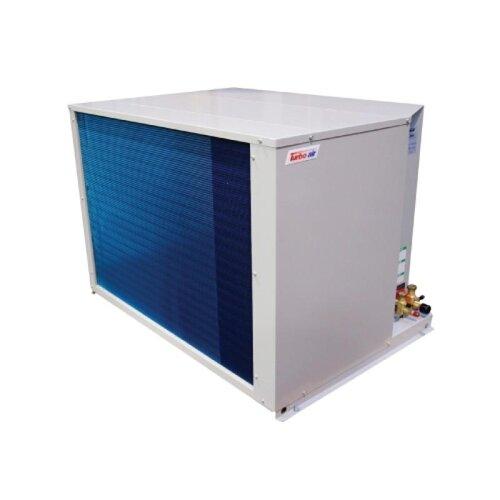

Turbo Air TD100XR404A3 10 HP Low Temp Condensing Unit

Availability:
In-Stock
  • 42200 BTU@-20F SST
  • 208-230V/60Hz/3Ph
  • 10 HP
  • R404a,R448a,R449a
  • Highest quality compressor in the world Copeland®
Title

For pricing and to purchase this product:

Please register, login, or contact us for a quote request

PRODUCT INFO

      Features:

  • Blue anti-corrosion fin increases the life span of the coil.
  • Seamless inner groove copper tube is used to increase the heat exchange rate by reducing the space between the fin and the copper tube.
  • Highest quality compressor in the world.
  • Condenser Fan ON/OFF switch controls a condenser fan to keep condensing pressure constant in low ambient for stable operation, minimize formation of flash gas, and prevent compressor damage by controlling high pressure.
  • Experienced engineers have designed the system for maximum efficiency.
  • Fan blades: Specifically matched with motors and coil for maximum air movement and cooling.
  • Control box is designed for easy installation.
  • Dual pressure control (Low and High) is adjustable.
  • All the parts are compliant with industry standards and interchangeable with readily available parts.
  • Wiring: Easily accessible. Compressor comes with a wiring harness that is manufactured with connections that will not come loose with vibration.
  • Control box and service valves are located outside for easy service.
  • Base: Heavy duty steel. Legs are 2-1/6” tall.
  • Cabinet: Prepainted with galvanized body. Protects against corrosion.
  • All products carry UL, cUL, ISO 9001 approvals.
  • 1 year parts and 1 year compressor warranty on condensing units and unit coolers.
  • 4 year extended warranty available for compressor: total 5 years

Dimensions:

  • W: 38.1 inch
  • D: 58.2 inch
  • H: 39.25  inch

SPECIFICATIONS

General Information
Capacity BTU (-20°F SST)42200
Fan CFM7557
Fan quantity2
HP10
Compressor Copeland®
3DS3F46KE
Compressor Amp
37.2(RLA), 215(LRA)
MCA/MOPD
51.3/80
Line Set connections size Inlet5/8 ID
Line Set connections size Suction1-3/8 ID
Approx. Net Wt. Lbs941
Refrigerant TypeR448a/R449a,R404a
