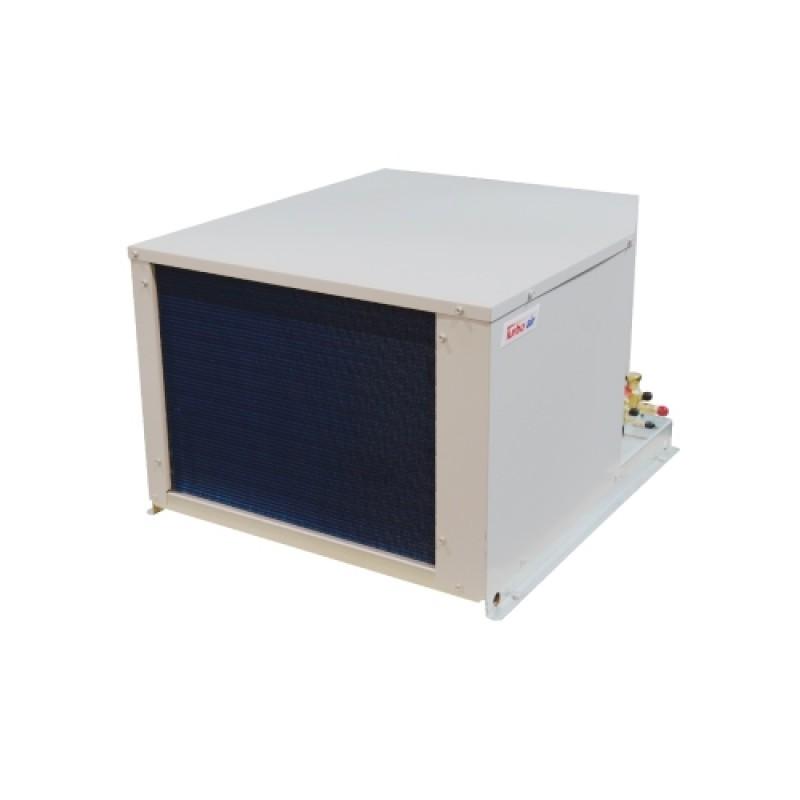

Turbo Air TH010MR404A2-T 1 HP Extended Medium Temp Condensing Unit

Availability:
In-Stock

BTU 9873@25F SST, Hermetic Comp, 208-230V/60Hz/1Ph

Title

For pricing and to purchase this product:

Please register, login, or contact us for a quote request

PRODUCT INFO

Blue anti-corrosion-fin increases the life span of the coil. Seamless inner groove copper tube is used to increase the heat exchange rate by reducing the space between the fin and the copper tube. Highest quality compressor in the world.

1 Year compressor warranty (4 Year extended warranty available).
1 Year fan motor and parts warranty.

Head pressure control stabilizes the freezing of liquid line, minimizes formation of flash gas to increase efficiency of the system, and prevents compressor damage by controlling high pressure. Experienced engineers have designed the system for maximum efficiency. Fan blades: Specifically matched with motors and coil for maximum air movement and cooling.

SPECIFICATIONS

                                       TH010MR404A2-T

  CompressorMS26TG
  Line Size3/8" Liquid 5/8" Suction
  Refrigerant (Receiver 90%)6 Lbs
  Fan Data1 Fan (980CFM)
  Dimensions24.49(D) x28.27(W)x 17.87(H)
  Net weight136 Lbs
  Power supply208-230/1 ph/60hz
  Compressor Amp8.3 (RLA), 43(LRA)
  MCA/MOPD15/15
  Refrigerant TypeR404a
