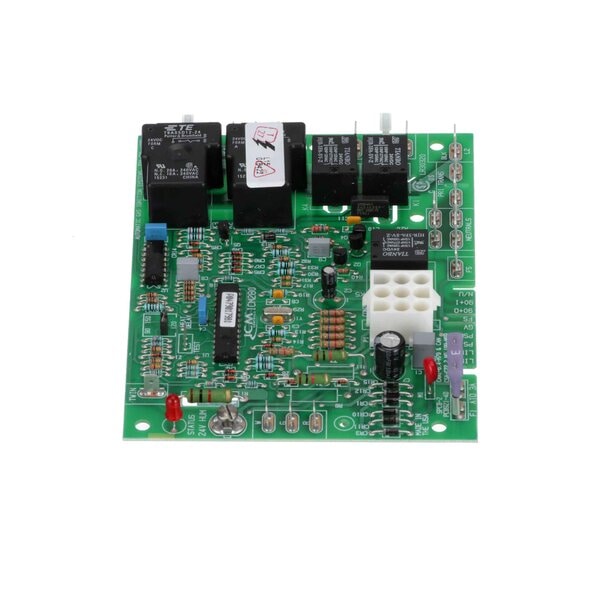

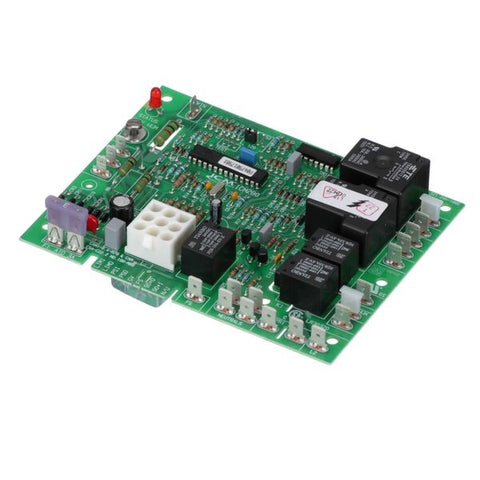

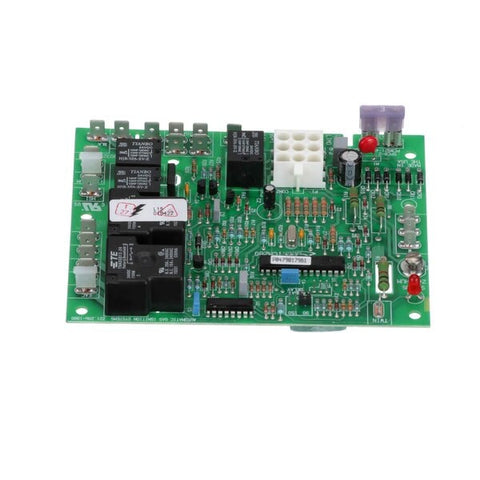

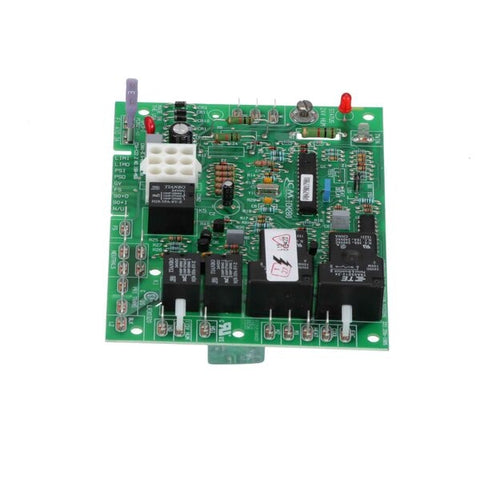

ICM ICM280 Furnace Ignition Control Board
Replaces: Goodman: B18099-06, B18099-08, B18099-10, B18099-13, B18099-13S; UTEC: 1012-933D; Texas Instruments: 41F-5; White-Rodgers: 50T35-730, 50T35-743
$134.63 USD
SKU:
ICM280
ID:
PH501-2S9-3163
Categories:
PRODUCT INFO
ICM offers low cost, direct wire for wire replacement furnace controls for many popular OEM models. Our furnace controls come standard with many safety features including 100% gas shutoff in case of ignition failure.
Product Features
- Microprocessor-based fan blower
- Inducer fan outputs
- Hot surface ignitor output
- Flame sensor input
- Gas valve output
- Status LED for fault codes
- Twinning compatible with another ICM280 board
- Functions with all 24 VAC thermostats
- Drop-in replacement for Goodman, Janitrol, Texas Instruments, White-Rodgers and UTEC
- For 80+ and 90+ applications
- 9-pin card slot connection and 9-pin Molex connector on board
- UL recognized
SPECIFICATIONS
| General Information | |
| Product Type | Furnace Control |
| Fan | 2 HP @ 240 VAC |
| Gas Valve | 1.5A @ 30 VAC |
| Heat | 5A, 240 VAC |
| Heat Blower ON Delay | 30 Seconds |
| Heat Blower OFF Delay | 90 Seconds, 120 Seconds, 150 Seconds |
| Operating Temp Range | -40° to 176°F |
| Voltage | Line (98/132 VAC) @ 60 Hz |
| Inducer Motor | 4A, FLA-8.0 LRA @ 120 VAC |
| Cool Blower | 10A, 2 HP, 240 VAC |
| Cool Blower ON Delay | 5 Seconds |
| Cool Blower OFF Delay | 60 Seconds |
