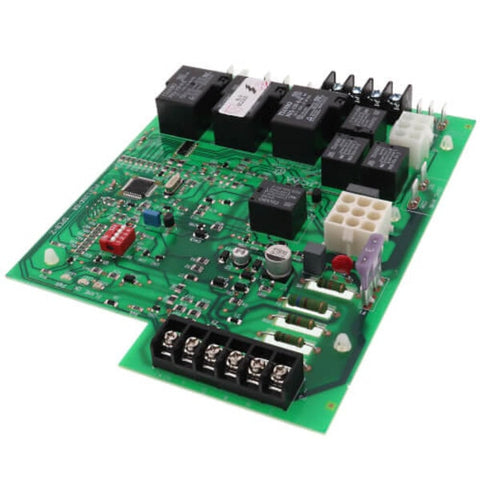

ICM Furnace Ignition Control Board Front View

ICM Furnace Ignition Control Board Front View

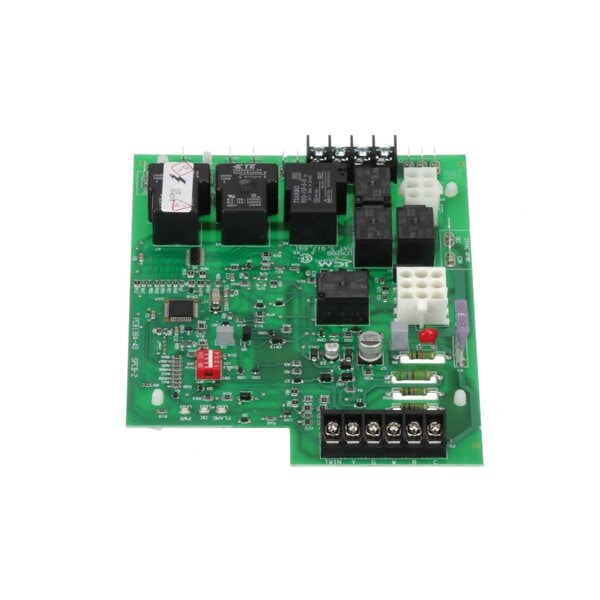

ICM Furnace Ignition Control Board Top View

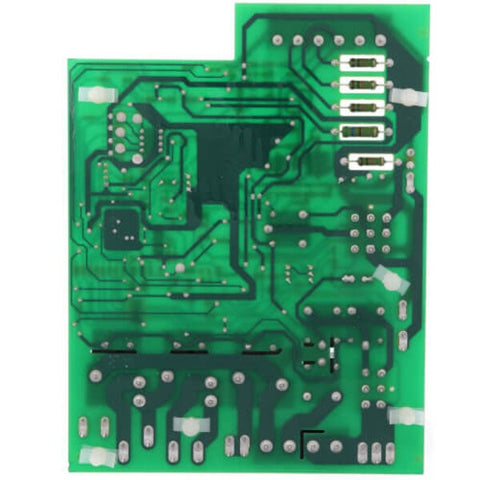

ICM Furnace Ignition Control Board Back View

ICM ICM288 Furnace Ignition Control Board

Availability:

In-Stock

PH501-3003 replaces the following brands and item numbers: Rheem: 62-24084-82.

$205.85 USD

Default Title

Buy Now

Add to wishlist

SKU:

ICM288

ID:

PH501-1S9-3003

Categories:

Control Boards / Controls / HVAC / PLUMBING / Thermostats & HVAC Controls

PRODUCT INFO

Microprocessor-based design
Monitors pressure, roll-out and limit switches
Controls gas valve, inducer draft motor, circulating blower and hot surface ignitor
Reverse polarity detection
Twinning compatible with other ICM288 control boards
Diagnostic LEDs for testing/troubleshooting

SPECIFICATIONS

General Information
Product Type	Furnace Control
Voltage	Line 98 to 132 VAC @ 60Hz
Ignitor	5A@120 VAC
Cool Blower	10A 2 HP, 240 VAC
Heat	5A 1/2 HP, 250 VAC
Inducer Motor	4A, 120 VAC
Humidifier Motor	0.5A, 24 VAC
Electronic Air Cleaner	1A, 120 VAC

Weight/Dimensions
Weight	0.55
Height	1.5
Width	5.75
Length	7.5
