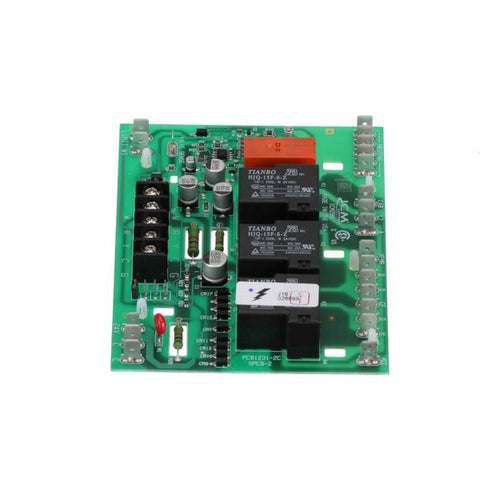

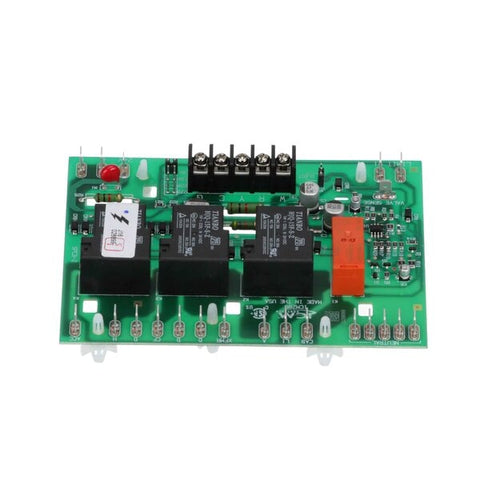

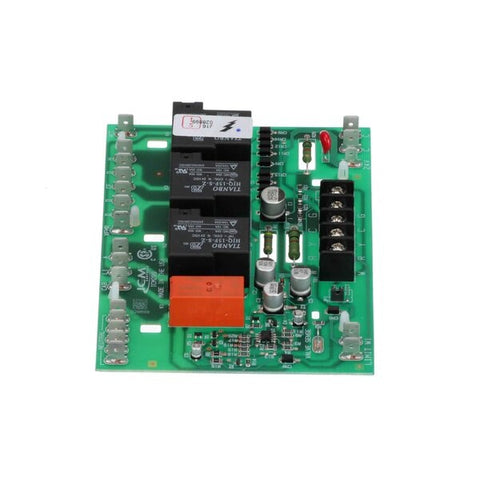

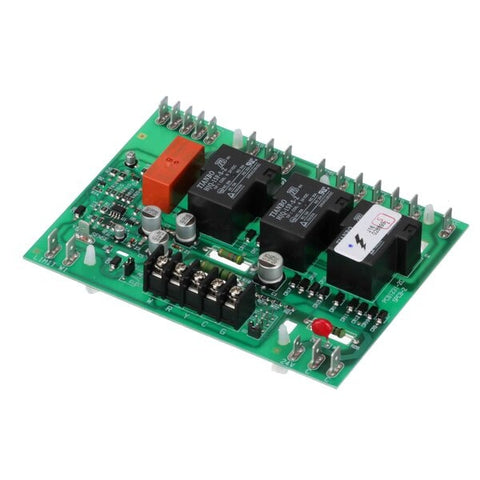

ICM ICM289 Furnace Ignition Control Board
- PH501-3008 replaces the following brands and item numbers: • Lennox: Replaces all BCC1, BCC2 and BCC3 circuit boards, including models LB-53622A,
BCC2-2REV8, 35K77, 35K7701, LB-90089A, 65K29, 65K2901, LB-50709BD, LB-65126A, LB-89859, LB-87086A, LB-87086, LB-63622AA, LB-90676A, 40L8801, 30H6701, 48K98, 48K9801, 45K48, 45K4801, 78J61, 78J6101, 68H08.
$175.42 USD
SKU:
ICM289
ID:
PH501-1S9-3008
Categories:
PRODUCT INFO
- Low cost form, fit and functional replacement board for Lennox BCC1, BCC2 and BCC3 circuit boards
- Controls inducer fan motor, blower fan and monitors limit switches
- Microprocessor-based design
- Functions with all 24 VAC thermostats
SPECIFICATIONS
| General Information | |
| Product Type | Control Board |
| Voltage Range | 98-132 VAC @ 60Hz |
| Cool Blower | 20A@120 VAC |
| Heat | 20A @120 VAC |
| Inducer Motor | 5A @120 VAC |
| Weight/Dimensions | |
| Weight | 0.35 |
| Height | 1 |
| Width | 5.625 |
| Length | 4.25 |
