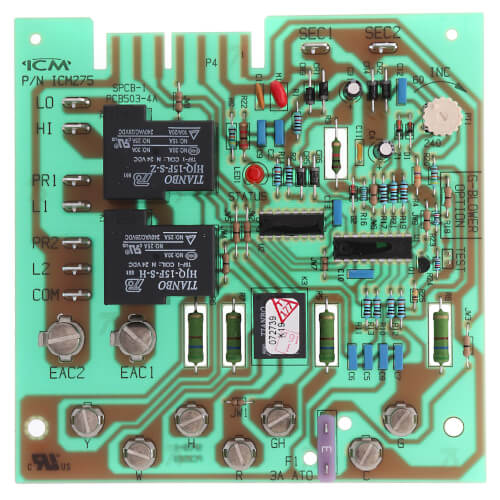

ICM ICM275C Fan Blower Control, Direct OEM Replacement - Dual On/Off Delay Timer
Replaces: Carrier: CES0110019, HH84AA001, HH84AA003, HH84AA005, HH84AA009, HH84AA014, HH84AA015, HH84AA021; Robertshaw: 695-101
$84.98 USD
SKU:
ICM275C
ID:
PH501-2S9-3230
Categories:
PRODUCT INFO
ICM offers low cost, direct wire for wire replacement fan blower controls for many popular OEM models. The fan blower controls monitors safety switches, provides on and off delays and controls the speed of the fan in heat pumps, air conditioners and forced air systems according to the logic of the original board.
The ICM275 Gas Furnace Control Center is a new generation control for the replacement market.
The ICM275 Gas Furnace Control Center is designed to function similarly to previous control center designs, while incorporating some of the latest features in furnace control center technology.
Product Features
- Heavy duty heat relay
- Purges ducts of residual air
- Integral short cycle protection
SPECIFICATIONS
| General Information | |
| Voltage: | 18/30 VAC |
| High: | 20 amps @ 240 VAC |
| Heat ON Time Delay: | 60 Seconds |
| Cool OFF Time Delay: | 90 Seconds |
| Frequency: | 50-60 H |
| - Low: | 10 amps @ 240 VAC |
| Heat OFF Time Delay: | 60-240 Seconds |
