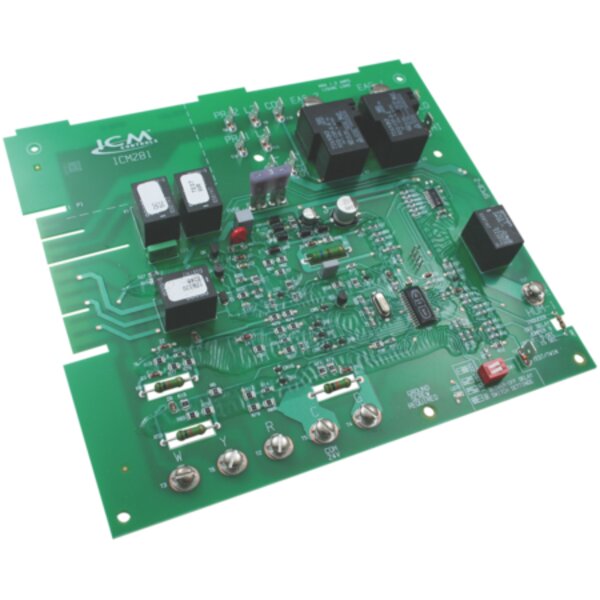

ICM ICM281 Furnace Control Module
$119.10 USD
SKU:
ICM281
ID:
PH501-2S9-3174
Categories:
PRODUCT INFO
ICM offers low cost, direct wire for wire replacement furnace controls for many popular OEM models. Our furnace controls come standard with many safety features including 100% gas shutoff in case of ignition failure.
Product Features
- Control gas valve, ignitor, blower motor, inducer, humidifier and air cleaner
- Microprocessor-based
- Designed for 100% gas shutoff in case if ignition failure
- Model selection of 80+ and 90+ furnace operation
- Reverse polarity protection
- Functions with all 24 VAC thermostats
- Secondary brownout voltage protection
- Heating and cooling fan functions in response to standard thermostat
- Providing diagnostic LEDs to aid in troubleshooting
- Twinning compatible with another ICM281 board
SPECIFICATIONS
| General Information | |
| Product Type | Furnace Control |
| Ignitor | 5A @ 120 VAC |
| Heat | 5A, 1/2 HP, 240 VAC |
| Gas Valve | 1.5A @ 30 VAC |
| Voltage | Line (98/132 VAC) @ 60 Hz |
| Cool Blower | 30A, 2HP, 240 VAC |
| Inducer Motor | 4A, FLA-8.0 LRA @ 120 VAC |
| Operating Temp Range | -40° to 176°F |
